| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

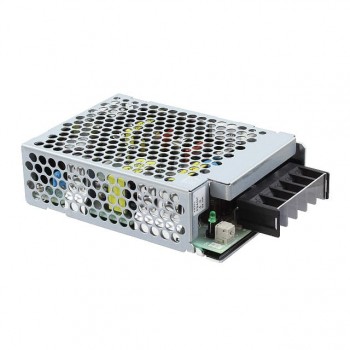

This Cosel PBA50F-5-CJN is an AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85 to 264 VAC and provides a stable 5VDC output at up to 10A, delivering a total power of 50W.
The converter boasts an efficiency of 82% and features a 3 kV isolation voltage. Its enclosed type and chassis mount design make it suitable for integration into various systems. The unit operates within a temperature range of -10°C to 71°C with derating.
Compliance includes CE, cURus, and TUV approvals, along with adherence to harmonic attenuator standards (IEC61000-3-2) and EMI standards (FCC-B, CISPR22-B, EN55011-B, EN55022-B, VCCI-B). EMS compliance is met through EN61204-3 and various EN61000 standards.
Key dimensions are 119.9mm in length, 31.0mm in width, and 82.0mm in height.
The output voltage is 5VDC.
The maximum output current is 10A.
The input voltage range is 85-264 VAC.
The efficiency is 82%.
The dimensions are 119.9mm in length, 31.0mm in width, and 82.0mm in height.
The operating temperature range is -10°C to 71°C (With Derating).
It has CE, cURus, and TUV approvals.
