| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Type | |
| Voltage | |
| Weight | |
| Width |

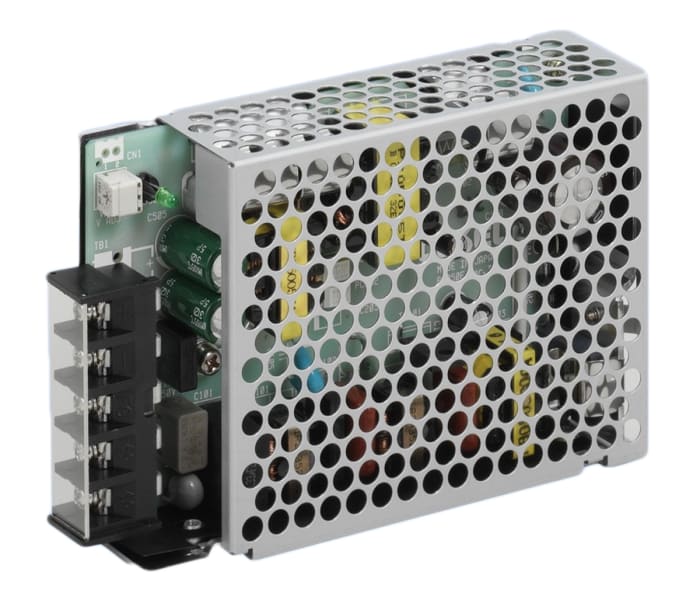

The Cosel PBA50F-3R3-N is a compact and lightweight AC DC power supply designed for various applications. It features a universal input voltage range of 85V AC to 264V AC, making it versatile for global use.
This model provides a stable 3.3V DC output with a maximum current of 10A, delivering a total power of 33W. It is designed for chassis mounting, facilitating integration into larger systems. The operating temperature range is from -10°C to 71°C, with derating applied at higher temperatures.
Key features include overcurrent and overvoltage protection, ensuring reliable operation. The power supply complies with harmonic attenuator standards (IEC61000-3-2) and meets various safety agency approvals such as CE and cURus.
Applications for this power supply include automated machinery and semiconductor equipment, where reliable and compact power conversion is essential.
The output voltage is 3.3V and the output current is 10A.
The AC input range is 85V to 264V AC, and the DC input maximum is 370V DC.
The operating temperature range is -10°C to 71°C with derating.
The power rating is 33W.
It uses chassis mount mounting.
Typical efficiency is 74% at both 100VAC and 200VAC input.
Input-to-output isolation is 3000V, input-to-FG is 2000V, and output-to-FG is 500V.
