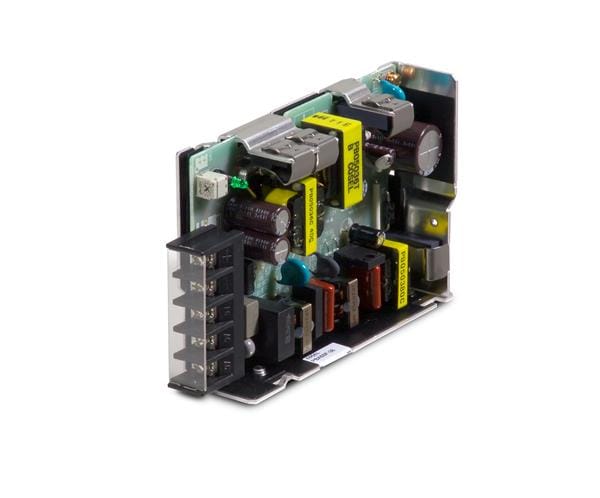

The Cosel PBA50F-3R3-CRN is an open-frame AC/DC converter designed for ITE (Commercial) applications. It provides a stable 3.3V DC output at up to 10A, delivering a total maximum output power of 50W. The unit accepts a wide universal input voltage range of 85 to 264 VAC, making it suitable for global use.
Key electrical specifications include an efficiency of 76% and an isolation voltage of 3 kV. The converter features overcurrent and overvoltage protection for enhanced reliability. It operates within a temperature range of -10°C to 71°C with derating.
Designed for easy integration, the PBA50F-3R3-CRN features a chassis mount type. It complies with various safety and emission standards, including CE, cURus, TUV, FCC-B, and CISPR22-B, ensuring robust performance and safety in commercial environments. The product comes with a 5-year warranty.
The output voltage is 3.3 VDC.
The maximum output current is 10 A.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -10°C to 71°C with derating.
Yes, it works over 105% of rated current and recovers automatically.
It holds UL60950-1, C-UL(CSA60950-1), EN62368-1, UL508, CE, cURus, and TUV approvals.
