| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Type | |
| Voltage |

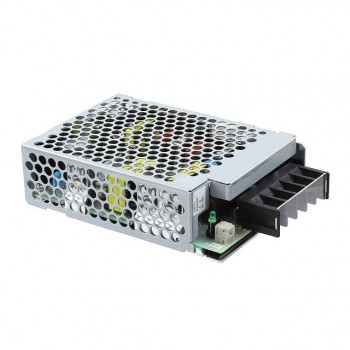

The Cosel PBA50F-24-CJN is an enclosed AC/DC power supply converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85 to 264 VAC, providing a stable 24V DC output at a maximum current of 2.2A.
This converter boasts an efficiency of 84% and offers an isolation voltage of 3 kV. It is designed for chassis mounting and operates within a temperature range of -10°C to 71°C with derating. The dimensions are 119.9mm in length, 31.0mm in width, and 82.0mm in height.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. Safety agency approvals are CE, cURus, and TUV, indicating its suitability for various commercial and industrial applications requiring reliable power conversion.
85-264 VAC.
24V.
50W.
84%.
3 kV.
Enclosed, chassis mount.
-10°C to 71°C with derating.
