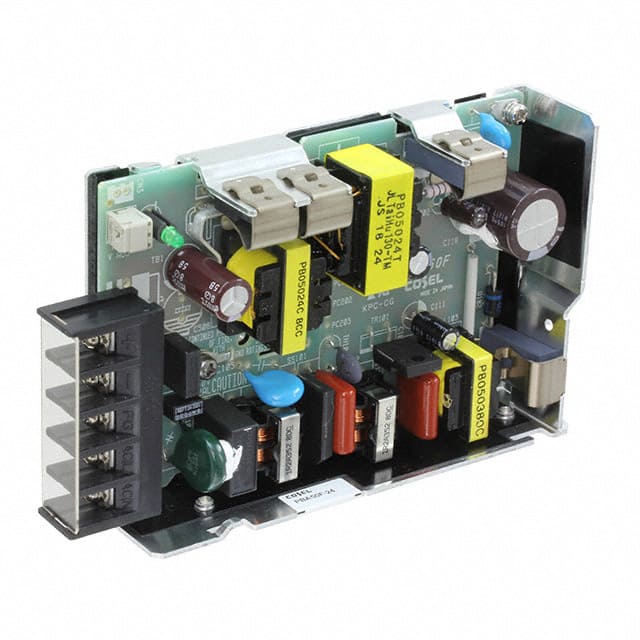

The Cosel PBA50F-24 is an open-frame AC/DC power supply designed for ITE (Commercial) applications. It delivers 50W of power with a nominal output voltage of 24V and a maximum current of 2.2A.
This converter operates with a universal input voltage range from 85 to 264 VAC, making it suitable for global use. It offers features such as DC input capability and harmonic attenuation compliant with IEC61000-3-2. The unit is designed for chassis mounting and includes safety agency approvals from CE, cURus, and TUV.
Key electrical specifications include a typical efficiency of 77% at 100V AC and 200V AC, with a maximum line regulation of 96mV and load regulation of 150mV. Overcurrent protection activates above 105% of rated current, and overvoltage protection ranges from 30.0-37.0V.
The output voltage is 24V.
The maximum output current is 2.2A.
The input voltage range is 85-264 VAC or 110-370 VDC.
The power rating is 50W.
The typical efficiency is 77% at 100V AC and 200V AC.
It is designed for chassis mounting.
Approvals include CE, cURus, and TUV.
