| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Failure Rate | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Type | |
| Voltage | |
| Width |

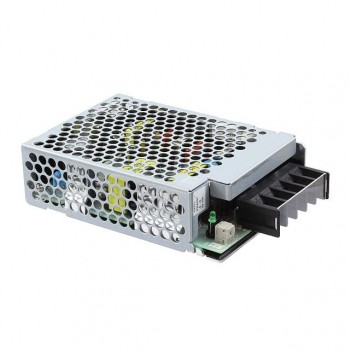

The Cosel PBA50F-12-CJN is an enclosed AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85 to 264 VAC and delivers a stable 12V output at up to 4.3A.
This converter boasts an efficiency of 82% and features robust safety agency approvals including CE, cURus, and TUV. Its enclosed type and chassis mount design make it suitable for integration into various systems.
Key specifications include an isolation voltage of 3 kV and an operating temperature range of -10°C to 71°C with derating. The unit also complies with harmonic attenuation standards (IEC61000-3-2) and EMI standards (FCC-B, CISPR22-B, EN55011-B, EN55022-B, VCCI-B).
With its reliable performance and comprehensive compliance, the PBA50F-12-CJN is a suitable choice for commercial electronic equipment requiring a dependable power conversion solution.
The input voltage range is 85-264 VAC.
It provides a 12V output at a maximum current of 4.3A.
The power rating is 50W.
The operating temperature range is -10°C to 71°C with derating.
It is an enclosed package designed for chassis mount.
It has safety agency approvals UL60950-1, C-UL(CSA60950-1), and EN62368-1.
It complies with FCC-B, CISPR22-B, EN55011-B, EN55022-B, and VCCI-B.
