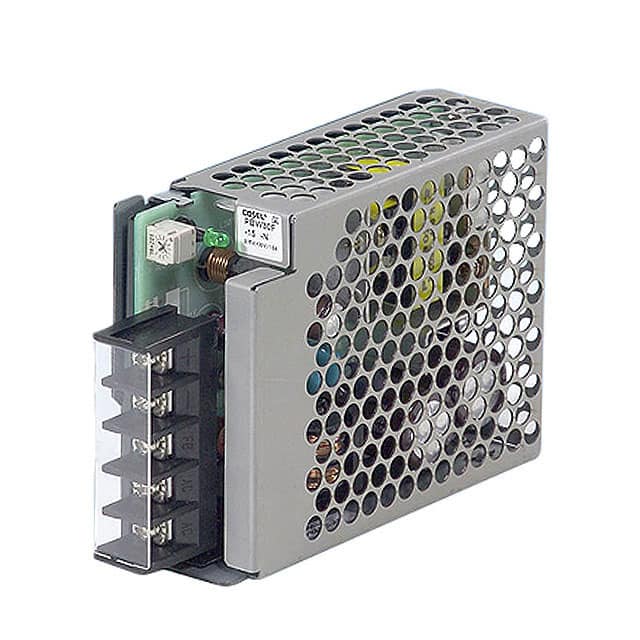

The Cosel PBA30F-48-N is an enclosed AC-DC power supply with a maximum output power of 30W and a nominal output voltage of 48V. It accepts a wide universal input voltage range from 85 to 264 VAC, making it suitable for global applications. This model features chassis mounting for easy integration into systems.
Key electrical specifications include an input current of 0.3A at 100V and 0.2A at 200V. The efficiency is rated at 81% typical. It offers features such as DC input capability and harmonic attenuation compliant with IEC61000-3-2. Protection features include overcurrent and overvoltage protection.
Safety agency approvals include CE, cURus, and TUV. The unit is designed for ITE (Commercial) applications and has a 5-year warranty. Compliance includes RoHS3, REACH Unaffected, and MSL 1.
This power supply is part of the PBA series, known for its small size, light weight, and increased efficiency through synchronous rectification technology.
85-264 VAC or 110-370 VDC.
48V at 0.65A.
30W.
Overcurrent protection activates above 105% of rated current and recovers automatically; overvoltage protection range is 30.0-37.0V.
3000 VAC input to output, 2000 VAC input to FG, 500 VAC output to FG.
74% typical at 200 VAC input.
Enclosed chassis mount.
