| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Ripple | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

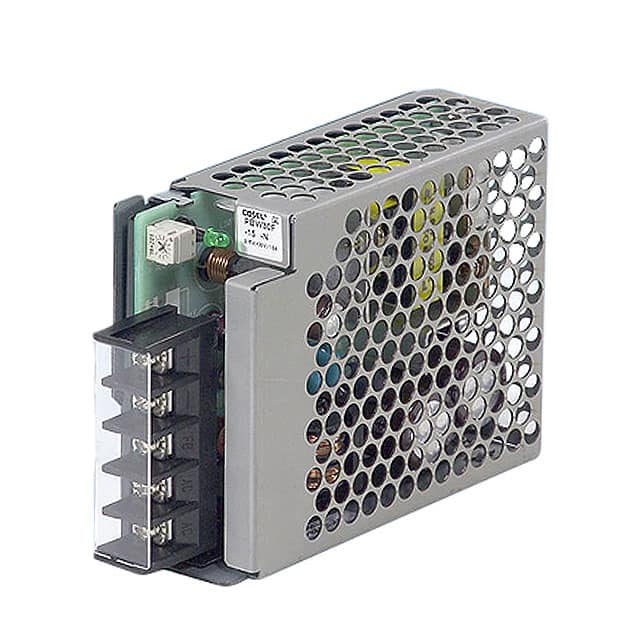

The Cosel PBA30F-3R3-GN is an enclosed AC/DC power supply converter designed for ITE (Commercial) applications. It features a single output with a voltage of 3.3V and a maximum current of 6A. The unit is designed for chassis mounting and has dimensions of 103.1mm x 31.0mm x 78.0mm.
Key electrical specifications include universal input voltage from AC85 to 264V and an efficiency of 69%. The operating temperature range is -10°C to 71°C with derating. Safety agency approvals include CE, cURus, and TUV, ensuring reliable performance in various environments.
This series offers features such as harmonic attenuation compliant with IEC61000-3-2 and universal input voltage. It also includes overcurrent and overvoltage protection circuits for enhanced safety and reliability.
The output voltage is 3.3V.
The maximum output current is 6A.
It uses chassis mounting.
The operating temperature range is -10°C to 71°C with derating.
It is approved by CE, cURus, and TUV.
The input voltage range is AC85 to 264V.
Yes, it works over 105% of rated current and recovers automatically.
