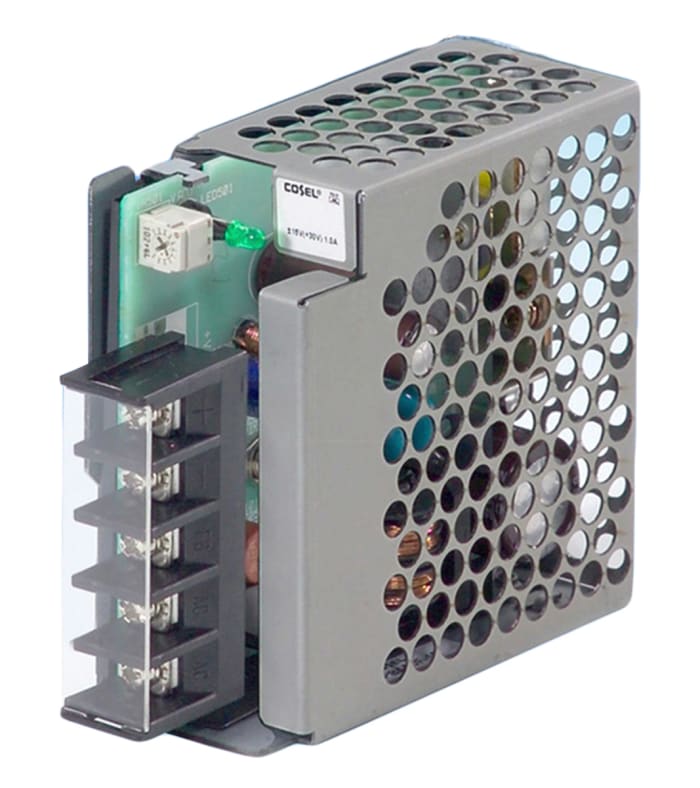

The Cosel PBA30F-12-N is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It delivers a 12V DC output at 2.5A, providing a total power of 30W. The unit accepts a wide universal input voltage range from 85V AC to 264V AC, making it suitable for global use.
Key electrical specifications include an efficiency of 78% and features such as overcurrent and overvoltage protection. The power supply is designed for chassis mounting and offers robust isolation voltages: 3000VAC between input and output, 2000VAC between input and FG, and 500VAC between output and FG.
With a compact design and a minimum operating temperature of -10°C and a maximum of 71°C, the PBA30F-12-N is a reliable choice for various industrial and commercial electronic systems. It complies with CE, cURus, and TUV standards.
The input voltage range is 85 to 264 VAC or 110 to 370 VDC.
Output is 12V at 2.5A with total power of 30W.
Operating temperature range is -10°C to 71°C.
Overcurrent protection triggers above 105% of rated current with automatic recovery. Overvoltage protection clamps between 15V and 18V.
Isolation is 3000VAC input-to-output, 2000VAC input-to-FG, and 500VAC output-to-FG.
The converter is a chassis-mount enclosed unit measuring 119.5mm x 34.5mm x 78mm and weighing 270g.
Yes, the output voltage can be adjusted from 10.0V to 13.2V.
