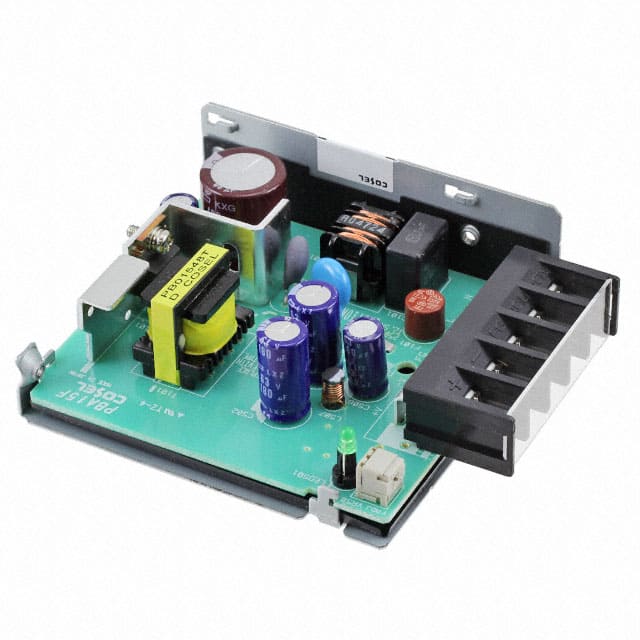

The Cosel PBA15F-48 is an enclosed AC DC converter designed for ITE (Commercial) applications. It features a universal input voltage range of 85 to 264 VAC, making it suitable for global use. The converter provides a single output of 48V at a maximum current of 350mA, resulting in a total power output of 15W.
Key electrical specifications include an efficiency of 78% and a low leakage current. The unit offers robust protection features such as overcurrent and overvoltage protection. It also includes isolation voltage ratings of 3kV (Input-Output), 2kV (Input-FG), and 0.5kV (Output-FG).
Designed for easy integration, the PBA15F-48 utilizes a chassis mount type. It operates within a temperature range of -10°C to 71°C with derating. The converter complies with various safety agency approvals including CE, cURus, and TUV.
85-264 VAC at 50/60 Hz.
48V DC at 350mA (15W).
-10 to 71°C with derating.
Chassis mount, enclosed package.
74% typical at both 100VAC and 200VAC input.
Overcurrent protection (auto-recovery above 105% rated current) and overvoltage protection (30.0-37.0V).
3kV between input and output.
