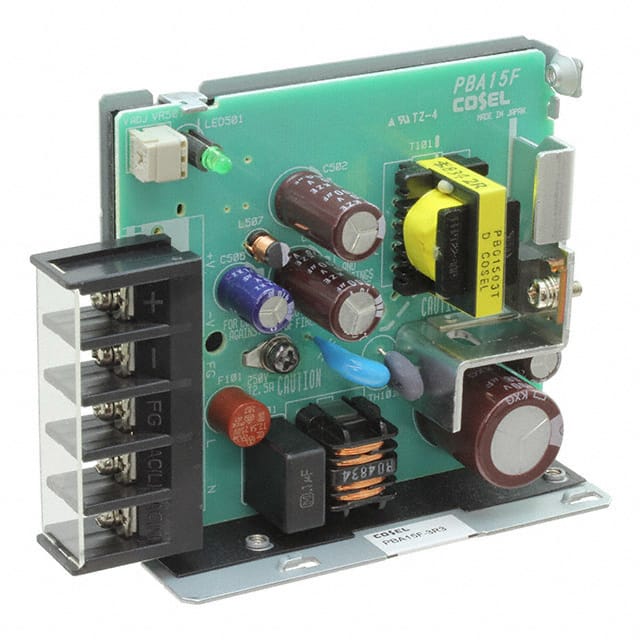

The Cosel PBA15F-3R3 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a single output of 3.3V at 3A, with a maximum output wattage of 15W.
This converter features a universal input voltage range of AC85-264V and includes harmonic attenuation compliant with IEC61000-3-2. It boasts an efficiency of 74% at ACIN 100V and 200V. Key electrical specifications include line regulation of 20mV, load regulation of 40mV, and ripple noise of 120mVp-p.
Designed for chassis mounting, the PBA15F-3R3 has dimensions of 85.1mm x 31.0mm x 78.0mm. It operates within a temperature range of -10°C to 71°C with derating. The unit is compliant with various safety and EMI standards, including CE, cURus, TUV, FCC-B, and CISPR22-B.
Additional features include overcurrent protection that automatically recovers and overvoltage protection. Isolation specifications include Input-Output at AC3,000V, Input-FG at AC2,000V, and Output-FG at AC500V.
The output voltage is 3.3V.
The maximum output current is 3A.
The universal input voltage range is AC85-264V.
The dimensions are 85.1mm x 31.0mm x 78.0mm.
The operating temperature range is -10°C to 71°C (With Derating).
Approval agencies include CE, cURus, and TUV.
Yes, it complies with IEC61000-3-2.
