| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

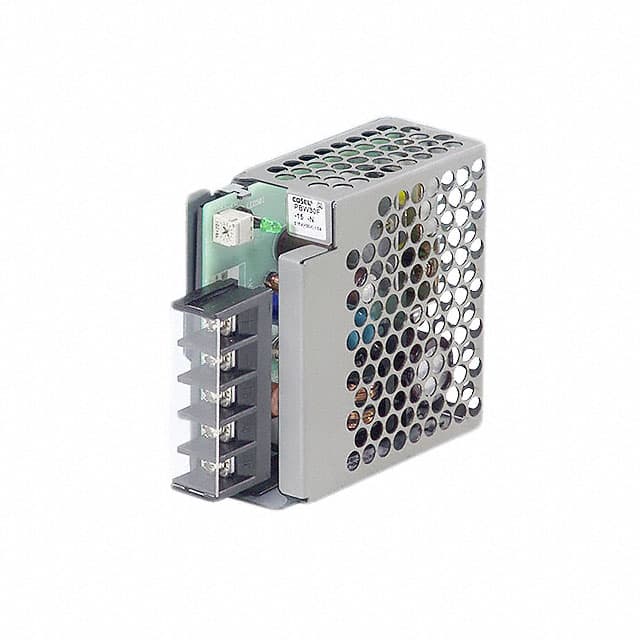

The Cosel PBA15F-12-N is an enclosed AC/DC power supply with a maximum output power of 15W and a nominal output voltage of 12V. It accepts a universal input voltage range from 85 to 264 VAC, making it suitable for global applications.
Designed for chassis mounting, this converter offers features such as overcurrent protection and overvoltage protection. It operates with an efficiency of 78% and has a typical input current of 0.30A at 100V and 0.20A at 200V.
Key electrical specifications include a line regulation of 48mV maximum and a load regulation of 100mV maximum. The ripple and noise are rated at 150mVp-p maximum under typical operating conditions. Safety agency approvals include CE, cURus, and TUV.
This power supply is compliant with RoHS regulations and has an MSL rating of 1.
The nominal output voltage is 12V.
The maximum output power is 15W.
The input voltage range is 85-264 VAC.
It uses chassis mount.
Yes, it is RoHS3 Compliant.
