| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

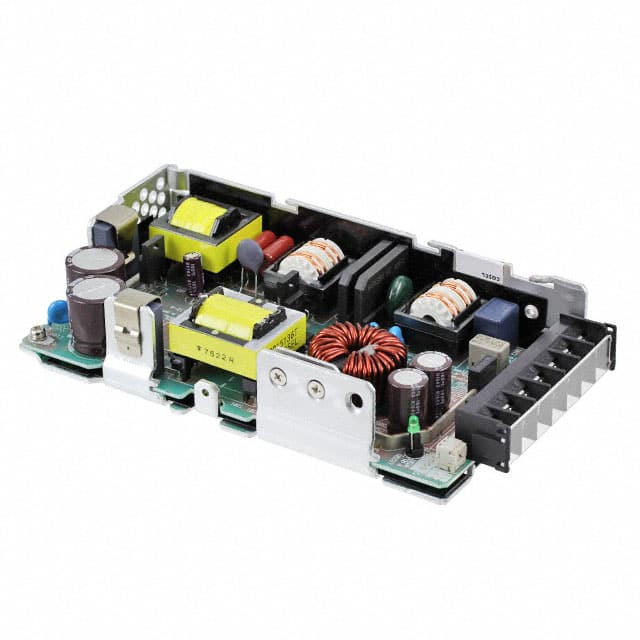

The Cosel PBA150F-9-RT is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a stable 9V output voltage with a maximum current of 16.7A, ensuring reliable power delivery.
This converter boasts an efficiency of 85% and features a chassis mount design for easy integration into various systems. The operating temperature range is -10°C to 71°C with derating, making it suitable for a wide array of environmental conditions. It also offers an isolation voltage of 3 kV, contributing to overall system safety.
Key specifications include a length of 167.9mm, width of 34.0mm, and height of 93.0mm. The PBA150F-9-RT is approved by CE, cURus, and TUV, meeting stringent industry standards.
The output voltage is 9V.
The output current is 16.7A maximum.
The efficiency is typically 85%.
The isolation voltage is 3kV.
The operating temperature range is -10°C to 71°C with derating.
The dimensions are 167.9mm x 34.0mm x 93.0mm (6.61" x 1.34" x 3.66").
It is an open frame chassis mount package.
