| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

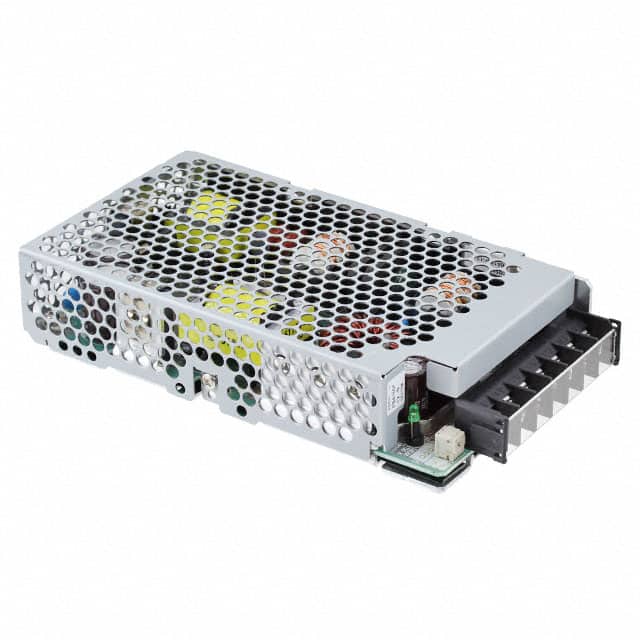

The Cosel PBA150F-9-RN is an enclosed AC/DC power supply designed for reliable operation in commercial ITE applications. It features a chassis mount type and provides a single output of 9V at 16.7A, with a maximum power rating of 150W. The unit boasts an efficiency of 85% and operates within a temperature range of -10°C to 71°C with derating.
Key electrical specifications include line regulation of 96mV maximum and load regulation of 150mV maximum. Ripple and noise are kept to a minimum, with ripple noise at 150mVp-p maximum at 0 to +50°C. The power supply offers robust protection features, including overcurrent protection that automatically recovers and overvoltage protection up to 37.0V.
Safety and compliance are paramount, with the PBA150F-9-RN holding approvals from CE, cURus, and TUV. It complies with various international standards including UL60950-1, CSA60950-1, EN62368-1, and UL508. The unit also meets harmonic attenuation standards (IEC61000-3-2) and EMI compliance (FCC-B, CISPR22-B, EN55011-B, EN55022-B, VCCI-B). It features power factor correction and meets EMS compliance standards.
Mechanical dimensions are 167.9mm in length, 34.0mm in width, and 93.0mm in height. The enclosed design and chassis mount facilitate integration into various systems. Isolation voltages are rated at 3000VAC (Input-Output), 2000VAC (Input-FG), and 500VAC (Output-FG).
The output voltage of the PBA150F-9-RN is 9V.
The maximum output current for the PBA150F-9-RN is 16.7A.
The maximum power output of the PBA150F-9-RN is 150W.
The efficiency of the PBA150F-9-RN is 85%.
The operating temperature range for the PBA150F-9-RN is -10°C to 71°C (With Derating).
The dimensions of the PBA150F-9-RN are 167.9mm (Length) x 34.0mm (Width) x 93.0mm (Height).
Yes, the PBA150F-9-RN complies with RoHS3.
