| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Ripple | |
| Type | |
| Voltage |

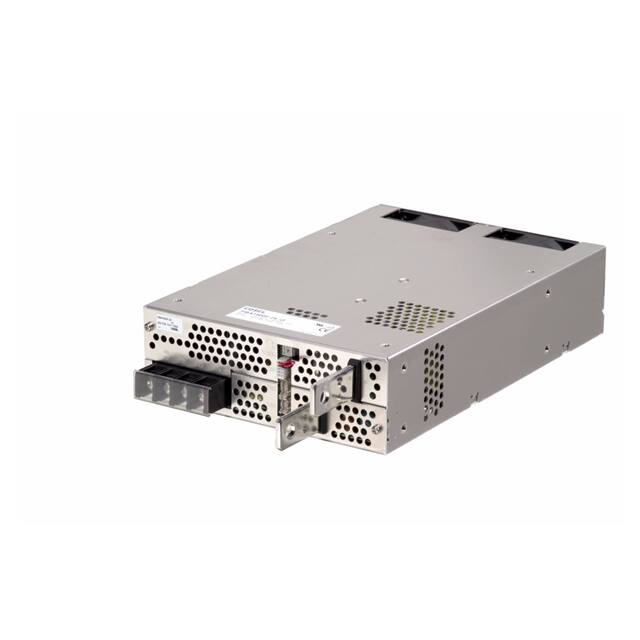

The Cosel PBA1500T-5 is a high-power AC/DC converter designed for industrial applications. It features a universal input voltage range of 85-264 VAC and provides a stable 5V DC output with a maximum current of 300A.
This enclosed type converter is built for reliability and ease of integration, featuring a chassis mount design. It complies with various safety and EMI standards, including UL60950-1, EN62368-1, FCC-B, and CISPR22-B, ensuring safe and efficient operation in ITE (Commercial) applications.
Key electrical specifications include a typical efficiency of 74% at 100V AC input, line regulation of 20mV maximum, and load regulation of 40mV maximum. The operating temperature range is -10°C to 70°C with derating. The unit also includes overcurrent and overvoltage protection for enhanced system safety.
With its robust construction and comprehensive compliance, the PBA1500T-5 is suitable for demanding power supply needs where reliability and performance are critical.
The output voltage is 5V.
The maximum output current is 300A.
The input voltage range is 85-264 VAC.
The operating temperature range is -10°C to 70°C with derating.
Yes, it complies with IEC61000-3-2.
It complies with FCC-B, CISPR22-B, EN55011-B, EN55022-B, and VCCI-B.
It has UL60950-1, C-UL(CSA60950-1), and EN62368-1 approvals.
