| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| SVHC Present | |
| Type | |
| Voltage | |
| Weight | |
| Width |

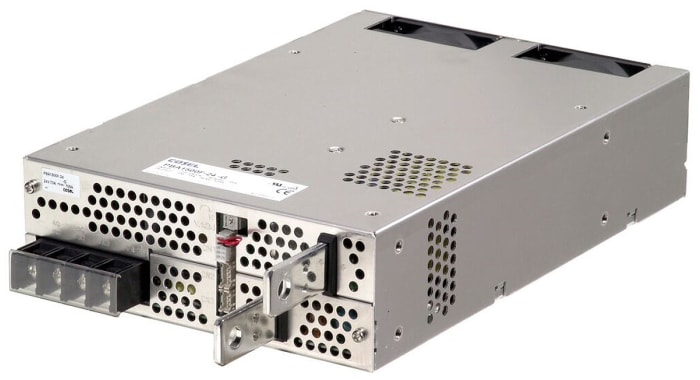

The Cosel PBA1500T-24-C is an enclosed AC/DC power supply designed for reliability and stable output voltage under demanding conditions. It provides a 24V DC output at 70A, with a maximum power of 1.5kW.
This power supply features a universal input voltage range of 85 to 264V AC, making it suitable for global applications. It boasts an efficiency of up to 87% and incorporates synchronous rectification technology for improved performance. The unit complies with harmonic attenuator standards (IEC61000-3-2) and EMI standards (FCC-B, CISPR22-B, EN55022-B, VCCI-B).
Designed for chassis mounting, the PBA1500T-24-C has a compact and lightweight form factor with dimensions of 268.0mm x 178.1mm x 61.0mm. It operates within a temperature range of -10°C to 70°C with derating and carries a 5-year warranty. Safety agency approvals include CE, cURus, and TUV, ensuring compliance for ITE (Commercial) applications.
The input voltage range is 170-264V AC for the PBA1500T-24-C.
The output voltage is 24V DC.
The operating temperature range is -10°C to 70°C with derating.
The unit is enclosed and chassis mount.
The output current is 70A.
The power rating is 1.5kW.
Safety approvals include UL60950-1, C-UL(CSA60950-1), EN62368-1, and UL508 (with cover).
