| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Ripple | |
| Type | |
| Voltage | |
| Width |

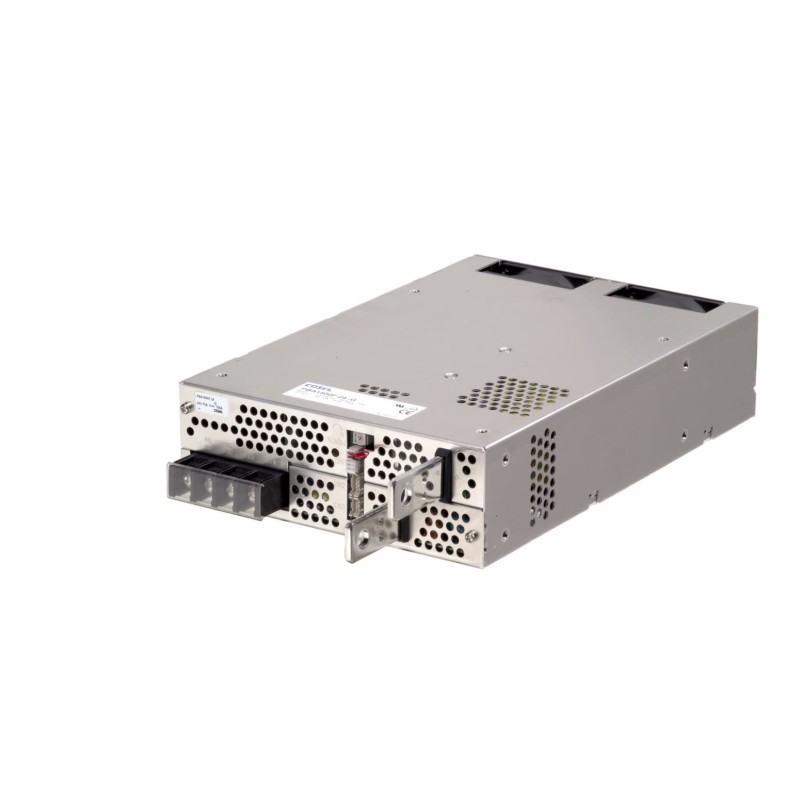

The Cosel PBA1500T-12-C is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a stable 12V output with a maximum current of 125A.
Key electrical specifications include an efficiency of 84%, line regulation of 48mV maximum, and load regulation of 100mV maximum. The operating temperature range is -10°C to 70°C with derating. Safety agency approvals include CE, cURus, and TUV.
This converter features a chassis mount type and dimensions of 268.0mm x 178.1mm x 61.0mm. It is compliant with RoHS3 standards and has an MSL rating of 1.
The output voltage is 12V.
The maximum output current is 125A.
The efficiency is 84% typical.
The operating temperature range is -10°C to 70°C (With Derating).
It is a chassis mount type.
The dimensions are 268.0mm (Length) x 178.1mm (Width) x 61.0mm (Height).
