PBA1500F-15-F1
Cosel

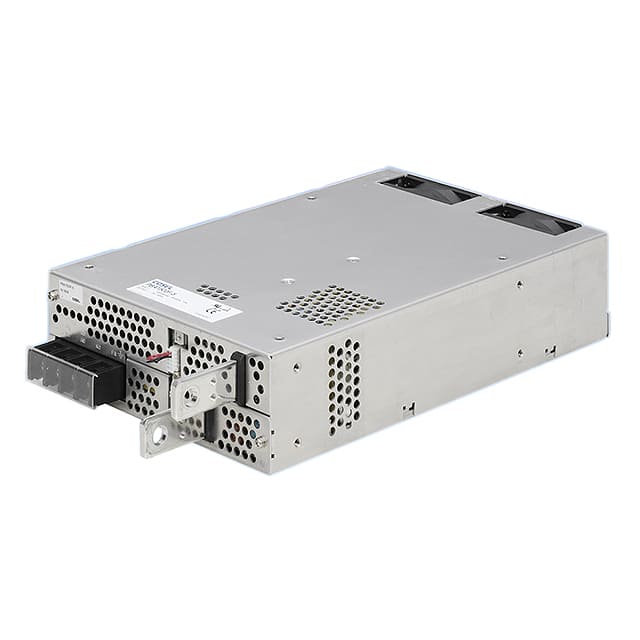

The Cosel PBA1500F-15-F1 is an enclosed AC/DC converter with a 15V, 100A output. It features universal input and is designed for ITE (Commercial) applications.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage |
The Cosel PBA1500F-15-U is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It offers a single output with a voltage of 15V and a maximum current of 100A. The unit is designed for chassis mounting and boasts a high efficiency of 86%.
This converter operates within a temperature range of -20°C to 70°C with derating. It includes safety features such as overcurrent and overvoltage protection, and isolation ratings of AC3,000V (input-output), AC2,000V (input-FG), and AC500V (output-FG).
Compliance includes CE, cURus, and TUV approvals, along with adherence to RoHS3, REACH Unaffected, and MSL 1 standards. The PBA1500F-15-U also features harmonic attenuation and universal input capabilities.
The output voltage is 15V.
The maximum output current is 100A.
The operating temperature range is -20°C to 70°C with derating.
It uses chassis mounting.
Approvals include CE, cURus, and TUV.
Yes, it works over 105% of rated current and recovers automatically.
