| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Power (Watts) | |
| Type | |
| Voltage |

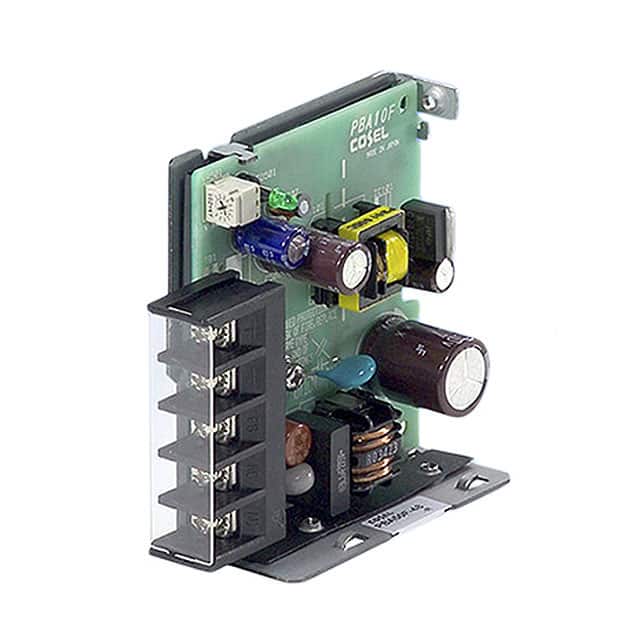

The Cosel PBA10F-5 is an open frame AC/DC power supply converter with a maximum output power of 10W and a nominal output voltage of 5V at 2A. It is designed for chassis mounting and features a universal input voltage range of 85 to 264 VAC, making it suitable for global applications.
This converter operates with an efficiency of 74% at 100V input and 200V input. It includes essential protection features such as overcurrent protection that automatically recovers and overvoltage protection. The isolation ratings are AC3,000V between input and output, AC2,000V between input and FG, and AC500V between output and FG.
Compliance includes CE, cURus, and TUV approvals. The PBA10F-5 is suitable for ITE (Commercial) applications and offers features like DC input capability. It has a 5-year warranty.
Key specifications include a line regulation of 20mV maximum and a load regulation of 40mV maximum. The ripple and noise are a maximum of 120mVp-p. Start-up time is typically 200ms at ACIN 100V with full load, and hold-up time is typically 20ms.
The nominal output voltage is 5V.
The maximum output power is 10W.
The input voltage range is 85 to 264 VAC.
It is designed for chassis mounting.
The PBA10F-5 is RoHS3 compliant.
The MSL is 1 Unlimited.
