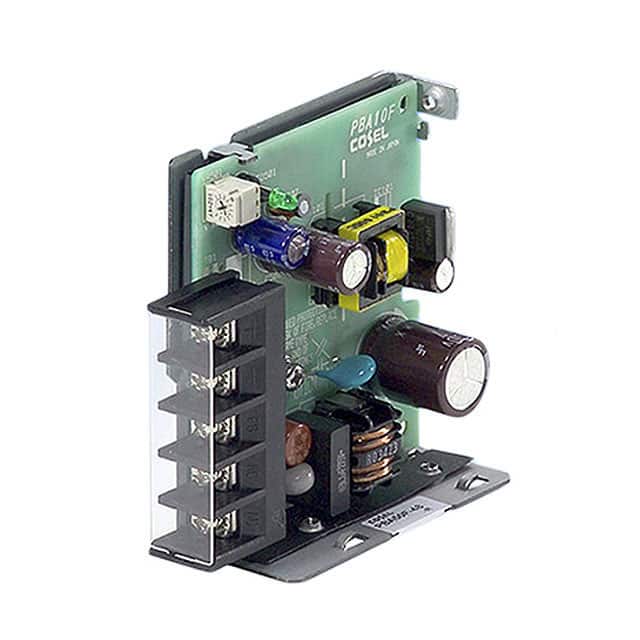

The Cosel PBA10F-12 is an open-frame AC/DC power supply designed for ITE (Commercial) applications. It provides a 12VDC output at a maximum current of 900mA, delivering a total power of 10W.
This converter operates with a universal input voltage range of 85 to 264 VAC, making it suitable for global use. It boasts an efficiency of 76% at 100VAC input and includes features such as DC input capability and automatic recovery from overcurrent conditions.
The PBA10F-12 is designed for chassis mounting and offers robust electrical specifications, including line regulation of 48mV maximum and load regulation of 100mV maximum. It also features overvoltage protection set between 15.0-18.0V.
Compliance includes CE, cURus, and TUV approvals, along with RoHS3 compliance. The unit has isolation voltages of 3000 VAC (Input-Output), 2000 VAC (Input-FG), and 500 VAC (Output-FG).
The input voltage range is 85 to 264 VAC.
The output is 12 VDC at 900 mA (10 W).
It includes overcurrent protection (auto-recovery above 105% rated current) and overvoltage protection (15.0-18.0 V).
Input-output isolation is 3000 VAC, input-to-FG is 2000 VAC, and output-to-FG is 500 VAC.
It is a chassis mount, open frame design.
It is approved to CE, cURus, and TUV standards.
Typical efficiency is 76% at 100 VAC input.
