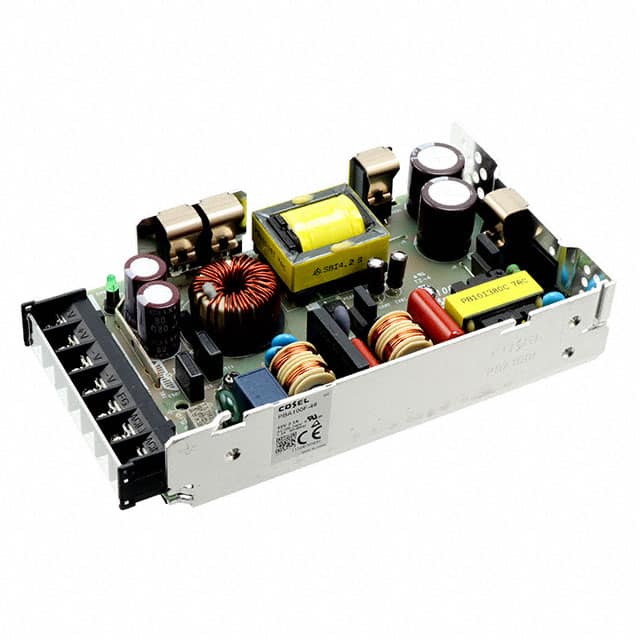

The Cosel PBA100F-48 is an open-frame AC/DC power supply designed for industrial applications. It delivers 100W of power with a single 48V output, capable of supplying up to 2.1A.
This converter operates with a universal input voltage range of 85 to 264 VAC, making it suitable for global use. It also supports DC input from 110 to 370 VDC. Key electrical specifications include a typical efficiency of 86%, line regulation of 96mV maximum, and load regulation of 150mV maximum.
Designed for reliability, the PBA100F-48 includes overcurrent protection that automatically recovers and overvoltage protection within a range of 30.0 to 37.0V. Isolation voltages are rated at 3000 VAC for input-to-output, 2000 VAC for input-to-FG, and 500 VAC for output-to-FG.
The unit is chassis mountable and features an open-frame construction. It complies with various safety agencies including CE, cURus, and TUV, and meets EMI standards such as FCC-B and CISPR22-B.
The Cosel PBA100F-48 provides a nominal output voltage of 48V DC and a nominal output current of 2.1A.
The AC input voltage range is 85-264 VAC, and the DC input voltage range is 110-370 VDC.
The nominal output power is 100W.
The PBA100F-48 is designed for chassis mounting and comes in an open frame package.
It includes overcurrent protection that works over 105% of rated current with automatic recovery, and overvoltage protection set between 30.0 and 37.0V.
The isolation voltage is 3000 VAC between input and output, 2000 VAC between input and FG, and 500 VAC between output and FG.
