| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

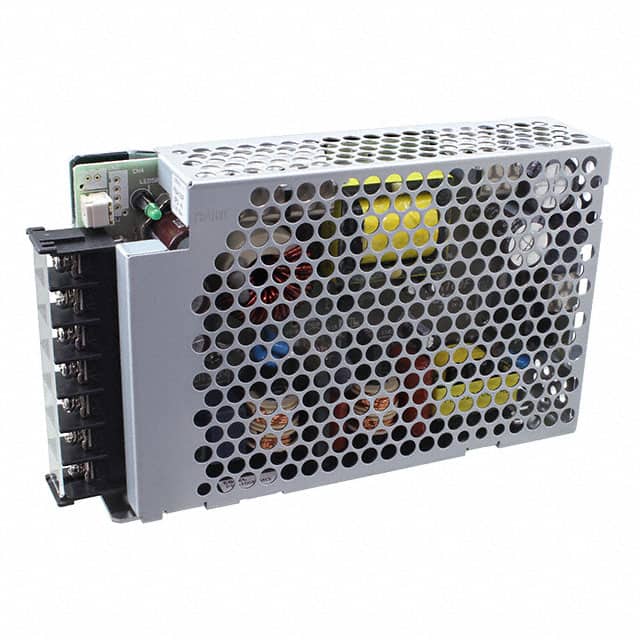

The Cosel PBA100F-3R3-N is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a stable 3.3V output voltage with a maximum current of 20A, delivering up to 100W of power. This unit features a chassis mount for easy integration into systems.
With an efficiency rating of 79% and an isolation voltage of 3kV, the PBA100F-3R3-N is built for reliable performance. The operating temperature range is -10°C to 71°C with derating, ensuring functionality in various environments. Approval agencies include CE, cURus, and TUV, indicating compliance with safety standards.
Key specifications include a single output, dimensions of 147.1mm x 32.0mm x 93.0mm, and compliance with RoHS3, REACH Unaffected, and MSL 1 Unlimited standards.
The output voltage is 3.3V.
The maximum output current is 20A.
The operating temperature range is -10°C to 71°C (With Derating).
It uses chassis mount.
The dimensions are 147.1mm x 32.0mm x 93.0mm.
Approval agencies include CE, cURus, and TUV.
