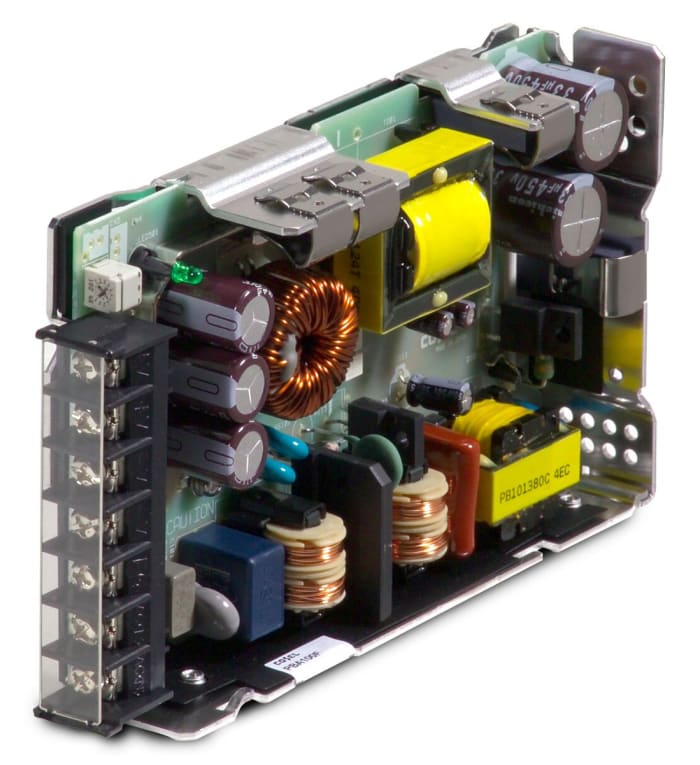

The Cosel PBA100F-3R3-C is an AC/DC converter designed for ITE (Commercial) applications. It features an open frame construction and chassis mount type, making it suitable for integration into various systems.
This converter provides a stable 3.3V DC output at a maximum current of 20A, delivering a total power of 66W. It accepts a wide universal input voltage range of 85-264V AC, ensuring compatibility in diverse power environments. The efficiency is rated at 79% typical.
Key electrical specifications include line regulation of 20mV maximum and load regulation of 40mV maximum. The operating temperature range is -10°C to 71°C with derating. Safety approvals include CE, cURus, and TUV.
Mechanical dimensions are 147.1mm in length, 32.0mm in width, and 93.0mm in height. The unit weighs 440g. It complies with RoHS3 standards and has an MSL rating of 1.
The PBA100F-3R3-C accepts 85 to 264VAC (47-440Hz) or 110 to 370VDC.
The output is 3.3V at 20A, providing 66W of power.
The operating temperature range is -10°C to +71°C with derating.
This converter is chassis mount with an open frame design. Dimensions are 147.1mm x 32.0mm x 93.0mm and weight 440g.
Yes, it has overcurrent protection that activates above 105% of rated current and recovers automatically.
Isolation voltage is 3000VAC between input and output, 2000VAC between input and FG, and 500VAC between output and FG.
