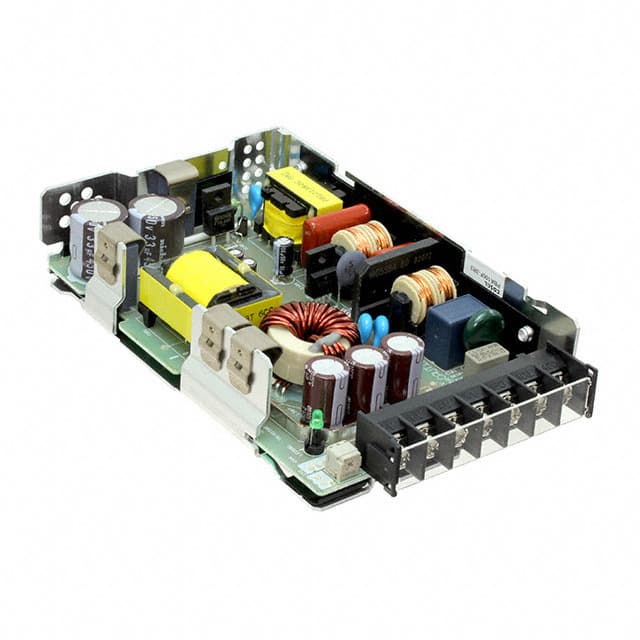

This AC/DC converter from Cosel, model PBA100F-3R3, is designed for ITE (Commercial) applications. It features an open frame construction and chassis mount type, making it suitable for integration into various systems.
The converter provides a single output of 3.3V at a maximum current of 20A, delivering a total power of 40W. It operates with a universal input voltage range of 85-264 VAC and boasts an efficiency of 79%. The operating temperature range is -10°C to 71°C with derating.
Key specifications include an isolation voltage of 3 kV and dimensions of 147.1mm x 32.0mm x 93.0mm. The PBA100F-3R3 is designed for reliable performance in demanding environments.
The output voltage is 3.3V nominal.
The input voltage range is 85-264 VAC or 120-370 VDC.
Typical efficiency is 79%.
Isolation voltage is 3 kV.
Operating temperature range is -10°C to 71°C with derating.
It uses a 7-DIP Module with 5 leads and through-hole mounting.
It has a single output.
