| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Depth | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Weight | |
| Width |

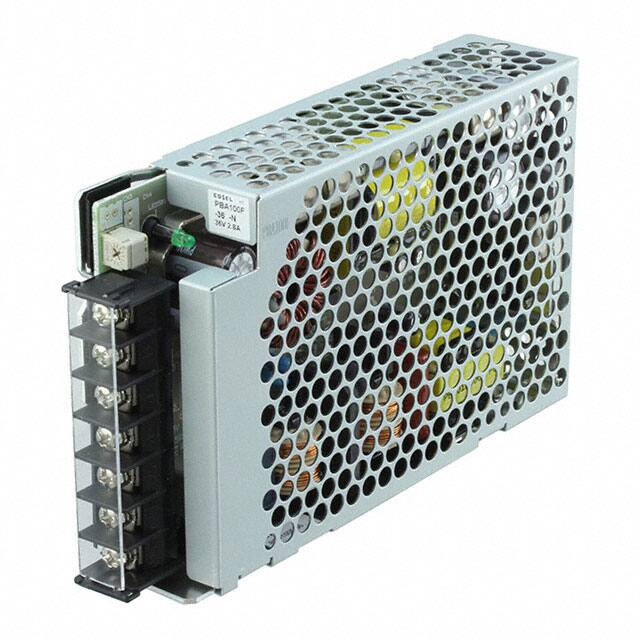

The Cosel PBA100F-36-N is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a stable 36V DC output at 2.8A, with a maximum power rating of 100.8W. The unit accepts a wide universal input voltage range from 85 to 264 VAC, ensuring compatibility in various regions.
Key electrical specifications include an efficiency of 86% and a single output. The power supply is designed for chassis mounting, making it suitable for integration into various systems. It operates within a temperature range of -10°C to 71°C.
Compliance and safety features include CE, cURus, and TUV approvals. The unit also complies with various EMI standards such as FCC-B and CISPR22-B, and meets EMS compliance standards like EN61000-6-2. It is RoHS3 compliant and has an MSL rating of 1.
The nominal output voltage is 36V.
The maximum output current is 2.8A.
The power rating is 100.8W.
It accepts a universal input voltage range of 85 to 264 VAC.
The efficiency is 86%.
The operating temperature range is from -10°C to 71°C.
It has CE, cURus, and TUV approvals.
