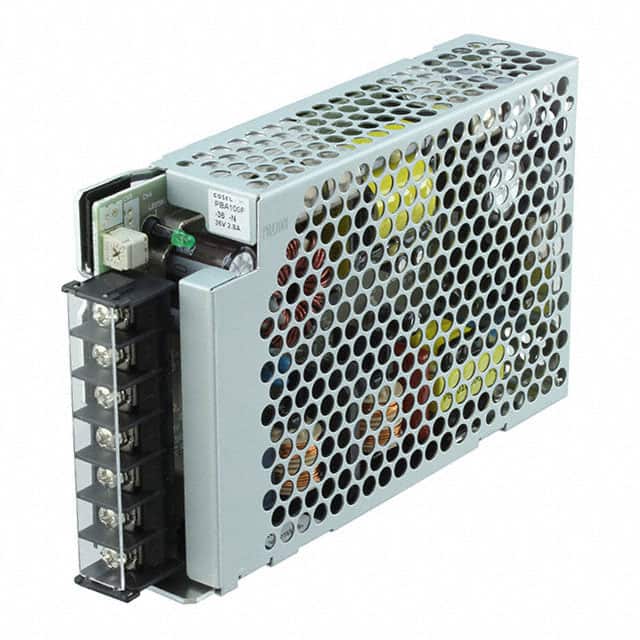

The Cosel PBA100F-24-N is a 100W AC/DC power supply designed for commercial ITE applications. It features a universal input voltage range of 85 to 264 VAC and provides a stable 24V DC output with a maximum current of 4.5A.
This converter boasts an efficiency of up to 86% and includes essential features like overcurrent and overvoltage protection. It is built for chassis mounting, making it suitable for integration into various systems. The unit complies with safety standards including CE, cURus, and TUV.
Key electrical specifications include a line regulation of 96mV maximum and a load regulation of 150mV maximum. The operating temperature range is -10°C to 71°C with derating. Isolation is rated at 3000 VAC between input and output.
The output voltage is 24V.
The maximum output current is 4.5A.
The input voltage range is 85 to 264 VAC.
The efficiency is up to 86%.
It uses chassis mount.
The approval agencies are CE, cURus, and TUV.
The operating temperature range is -10°C to 71°C with derating.
