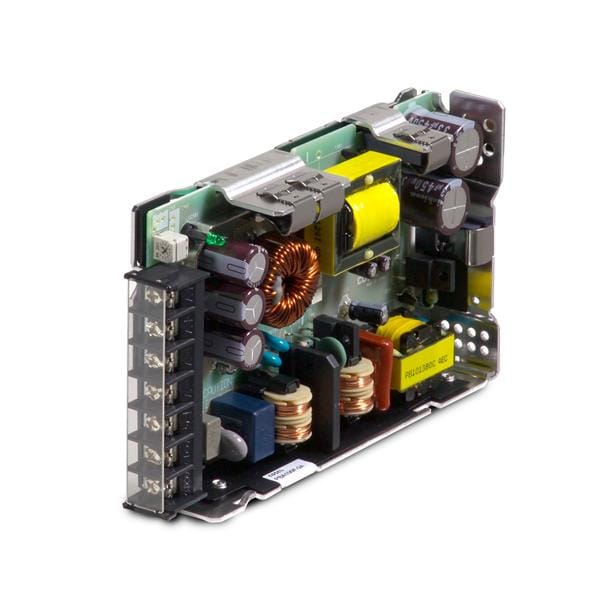

The Cosel PBA100F-24 is a versatile 100W AC/DC power supply designed for commercial ITE applications. It operates with a universal input voltage range of 85 to 264 VAC, making it suitable for global use. The converter provides a stable 24V output at 4.5A, delivering up to 100W of power.
This open frame unit is designed for chassis mounting, offering a compact solution for integration into various systems. Key electrical specifications include an efficiency of up to 86% and features like harmonic attenuation and power factor correction. It also complies with international safety and EMI standards.
Designed for reliability, the PBA100F-24 includes overcurrent and overvoltage protection circuits. It offers robust isolation between input and output, input and FG, and output and FG, ensuring safe operation. The operating temperature range is -10°C to 71°C with derating.
The output voltage is 24V.
The maximum output current is 4.5A.
The maximum output power is 100W.
The input voltage range is 85-264 VAC or 110-370 VDC.
The operating temperature range is -10°C to 71°C with derating.
Yes, it is RoHS3 Compliant.
