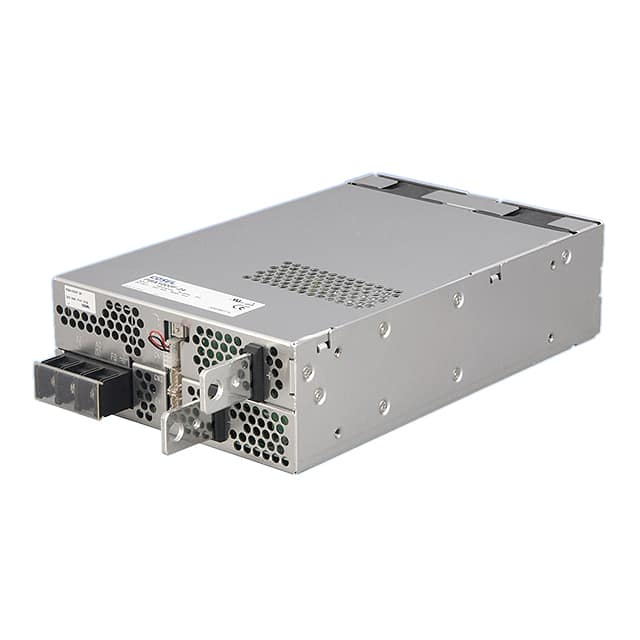

The Cosel PBA1000F-48-U is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It features a single output with a voltage of 48V and a current capacity of 22A, delivering a maximum wattage of 1000W. The unit boasts an efficiency of 86% and operates within a temperature range of -20°C to 70°C with derating.
This power supply is designed for chassis mounting and includes safety agency approvals from CE, cURus, and TUV. It provides essential protections such as overcurrent and overvoltage protection. The input voltage range is universal, accepting AC85 - 264V, with typical input current values of 0.30A at 100V and 0.20A at 200V. The dimensions are 240.0mm in length, 150.1mm in width, and 61.0mm in height.
The output voltage is 48V.
The maximum output current is 22A.
The efficiency is 86%.
It supports chassis mount.
The operating temperature range is -20°C to 70°C (With Derating).
It has CE, cURus, and TUV approval agency certifications.
