The PBA000027 is a 100 MHz crystal clock oscillator (XO) from Diodes Incorporated, part of the PB Series. It features a PECL output logic and operates from a 3.3V supply voltage. The oscillator is based on a non-PLL design, providing low jitter performance with typical phase jitter of 0.5 ps RMS and total jitter of 25 ps pk-pk.
Key electrical specifications include a frequency stability of ±20 to ±50 ppm, duty cycle of 45% to 55%, and rise/fall times of 500 to 850 ps. The supply current is 55 to 88 mA when enabled, and only 0.03 mA in standby mode. The output requires a 50 Ω termination to Vcc - 2V.

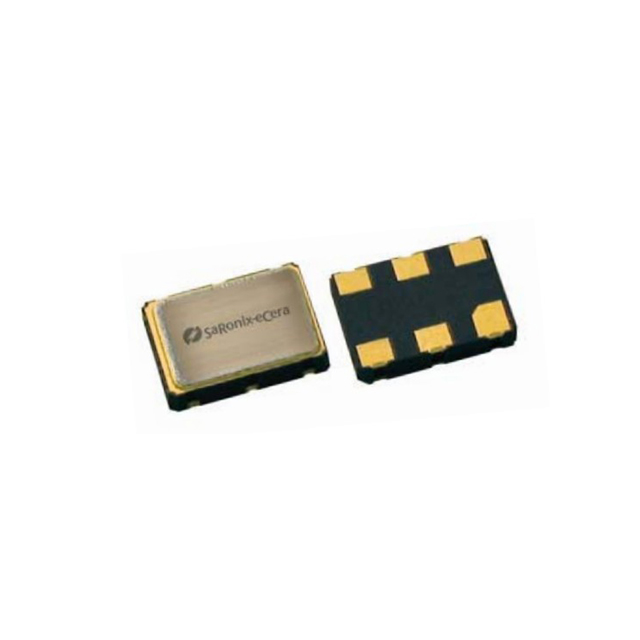

The device is housed in a 7.0 x 5.0mm ceramic SMD package, suitable for surface mount assembly. It operates over a temperature range of -20°C to 70°C. Applications include 1/10 Gigabit Ethernet, Fibre Channel, SAS, server and storage platforms, SONET/SDH, and PON devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.77 | $4.77 |
| 10+ | $4.15 | $4.15 |
| 25+ | $3.92 | $3.92 |
| 50+ | $3.76 | $3.76 |
| 100+ | $3.61 | $3.61 |
| 250+ | $3.41 | $3.41 |
| 500+ | $3.27 | $3.27 |
| 1,000+ | $3.14 | $3.14 |
| 1,500+ | $3.06 | $3.06 |
| 2,500+ | $2.97 | $2.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3 V.
7.0 x 5.0mm Ceramic SMD.
-20°C to 70°C.
RoHS3 Compliant (unverified).
PECL.
100 MHz.
0.5 to 1 ps RMS.
