Mfr Part #:

PB5008-E3/45

Mfr Name: Vishay

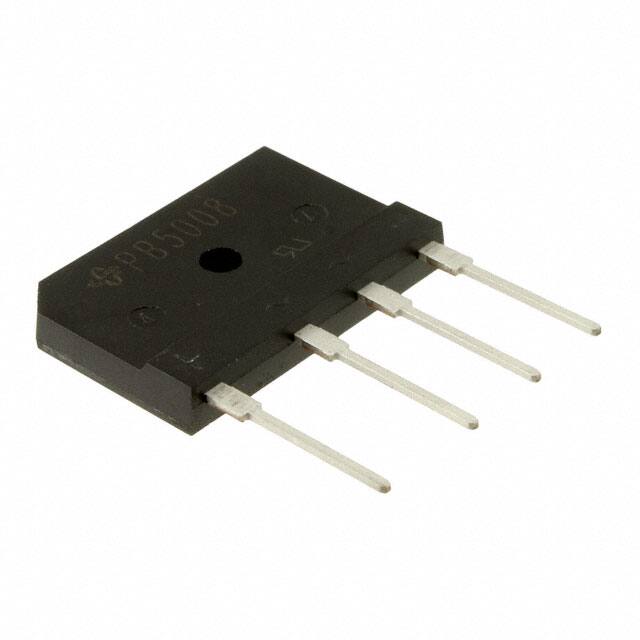

Single phase bridge rectifier rated for 800V repetitive peak reverse voltage and 45A average rectified current (with heatsink).

✓ Total Stock: 5,800 pcs

$ Price Range: $2.19 - $6.18

PB5008-E3/45 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Risen Electronics ✓ Non-Authorised Inventory information	4,800 pcs On Request	4800 pcs	On Request	1	On Request	On Request	On Request	On Request	2026-02-16 21:33:16
Braun Electronic Components ✓ Non-Authorised Inventory information	1,000 pcs On Request	1000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

PB5008-E3/45 Description

Short technical summary and product information.

The PB5008-E3/45 is a single-phase bridge rectifier from Vishay General Semiconductor, designed for general purpose AC/DC full wave rectification. It features a repetitive peak reverse voltage of 800V and an average rectified forward current of 45A when mounted with a heatsink (4.5A without heatsink). The typical forward voltage is 0.90V at 22.5A, and it can handle non-repetitive surge currents up to 450A. The I²t rating is 840 A²s, making it suitable for applications with high inrush currents.

The device is packaged in a through-hole 4-SIP PB (isoCINK+™ PB) case, which offers enhanced thermal conductivity. It is UL 1557 recognized (file E312394) with dielectric testing to 1500V and meets UL 94 V-0 flammability rating. The operating junction temperature range is -55°C to 150°C. Typical applications include switching power supply input rectification, home appliances, and white goods.

Mounting torque should not exceed 10 cm-kg, with a recommended torque of 5.7 cm-kg. The component is RoHS-compliant (industrial grade, suffix E3) and has matte tin plated leads solderable per J-STD-002.

PB5008-E3/45 Quick Information

Product Type: Bridge Rectifier

Series: PB5008

Canonical Name: PB5008-E3/45 Single Phase Bridge Rectifier, 800V, 45A

Subcategory: Single Phase Bridge Rectifier

PB5008-E3/45 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

PB5008-E3/45 Estimated Pricing

Qty	Low	High
1+	$6.18	$6.18
20+	$3.71	$3.71
100+	$2.97	$2.97
500+	$2.47	$2.47
1,000+	$2.31	$2.31
2,000+	$2.19	$2.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

PB5008-E3/45 Features

Rated for 800V repetitive peak reverse voltage.
Handles 45A average rectified current with heatsink.
Surge current rating of 450A.
UL 1557 recognized for safety isolation.
Through-hole PB package with isoCINK+™ technology.

PB5008-E3/45 Applications

General purpose AC/DC full wave rectification.
Switching power supply input stages.
Home appliance power circuits.
White goods power conversion.

PB5008-E3/45 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the repetitive peak reverse voltage of the PB5008-E3/45?

800V.

What is the average rectified forward current rating?

45A with heatsink (TC=84°C) or 4.5A without heatsink.

What is the typical forward voltage drop?

0.90V at IF=22.5A.

What package is the PB5008-E3/45 available in?

4-SIP PB (isoCINK+™ PB) through-hole package.

What is the non-repetitive peak forward surge current?

450A (8.3ms single sine-wave).

Is the PB5008-E3/45 UL recognized?

Yes, UL 1557 recognized (file E312394), dielectric tested to 1500V.

What is the operating temperature range?

-55°C to 150°C (junction).

Category	Diodes - Bridge Rectifiers
Manufacturer Name	Vishay
Current	10 A @ 800 V
Diode Type	Single Phase
Industrial Grade	Yes
Lead Style	In-Line
Mounting Type	Through Hole
Operating Temperature	150 °C
Storage Temperature	-55.0°C ~ 150.0°C
Supplier Device Package	isoCINK+™ PB
Tape & Reel	No
Technology	Standard
Voltage	800 V
