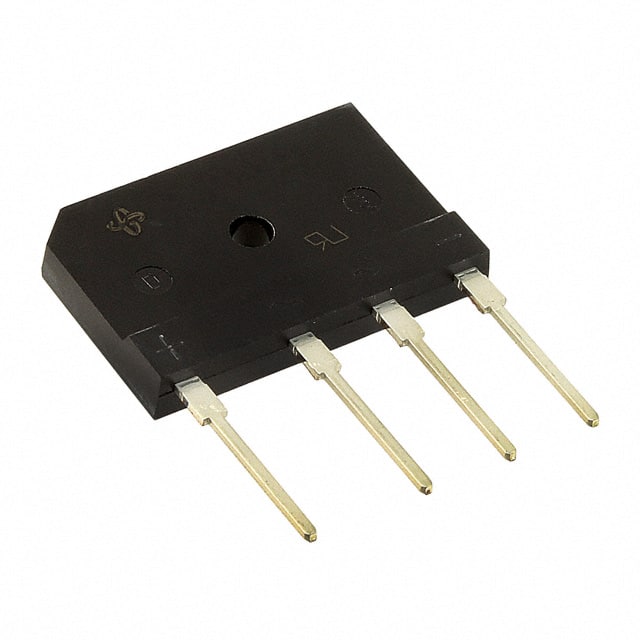

The Vishay PB3506-E3/45 is a single-phase bridge rectifier designed for AC/DC full-wave rectification. It has a repetitive peak reverse voltage rating of 600V and an average rectified forward current of 35A when mounted with a heatsink (TC=91°C). Without a heatsink, the rated current is 4.2A at TA=25°C.
Electrical characteristics include a typical forward voltage of 0.90V at 17.5A and a maximum reverse leakage current of 10µA. The device can handle a non-repetitive peak forward surge current of 350A (8.3ms single sine-wave) and operates at a junction temperature up to 150°C.
The rectifier is housed in a PB package (4-SIP) with through-hole mounting and in-line leads. It features an enhanced isoCink+ construction for improved thermal performance. The case meets UL 94 V-0 flammability rating, and the E3 suffix indicates RoHS compliance.
Typical applications include general-purpose AC/DC rectification in switching power supplies, home appliances, and white goods. The device is UL recognized (file E312394) for safety.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.59 | $5.59 |
| 20+ | $3.33 | $3.33 |
| 100+ | $2.65 | $2.65 |
| 500+ | $2.20 | $2.20 |
| 1,000+ | $2.06 | $2.06 |
| 2,000+ | $1.93 | $1.93 |
| 5,000+ | $1.92 | $1.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The repetitive peak reverse voltage (VRRM) is 600V.
With a heatsink at TC=91°C, it is 35A. Without a heatsink at TA=25°C, it is 4.2A.
The typical forward voltage is 0.90V at a forward current of 17.5A.
It comes in a 4-SIP PB through-hole package with in-line leads.
The non-repetitive peak forward surge current is 350A for 8.3 ms single sine-wave.
Yes, the E3 suffix indicates RoHS3 compliance per the datasheet.
150°C.
