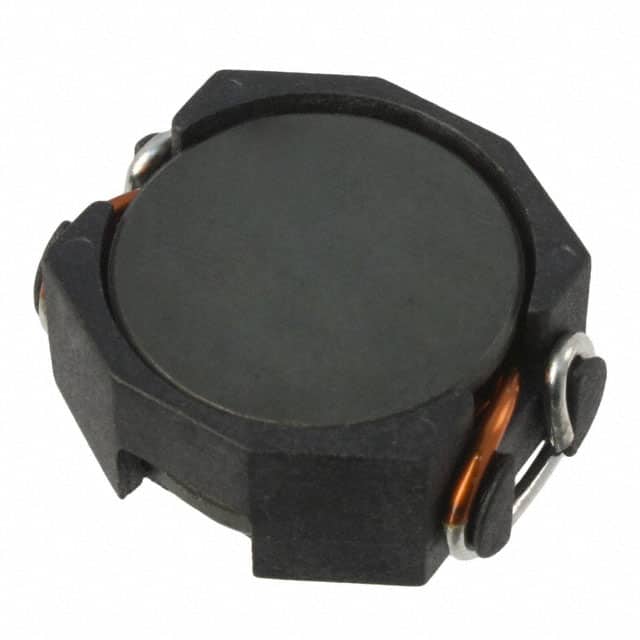

PB2020.153NL The Pulse Electronics PB2020.153NL is an unshielded wirewound fixed inductor with a 15µH inductance and a 9.7A current rating. It features a surface mount package.
Mfr Part #:

PB2020.153NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PB2020.153NL is an unshielded wirewound fixed inductor with a 15µH inductance and a 9.7A current rating. It features a surface mount package.
✓ Total Stock: 57 pcs
$ Price Range: $0.52

PB2020.153NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
57 pcs
On Request
57 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PB2020.153NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Footprint
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tape & Reel
Tolerance
Type
Weight
Width
View Similar Products (0)

PB2020.153NL Description

Short technical summary and product information.

The Pulse Electronics PB2020.153NL is a wirewound, unshielded fixed inductor from the PB2020NL series. It offers an inductance value of 15µH with a tolerance of ±20%. This component is designed for surface mounting and operates within a temperature range of -40°C to 130°C.



Key electrical specifications include a DC resistance of 13mΩ maximum and a current rating of up to 30A. The inductor has a height of 10.16mm and a footprint of 23.9mm x 20.8mm. Its unshielded drum core construction makes it suitable for various power applications where space and performance are critical.



This inductor is RoHS3 compliant and has an MSL rating of 1.

PB2020.153NL Quick Information

Product Type: Fixed Inductor
Series: PB2020NL
Canonical Name: Pulse Electronics PB2020NL Series Unshielded Drum Core Wirewound Fixed Inductor
Subcategory: Unshielded Drum Core

PB2020.153NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PB2020.153NL Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PB2020.153NL Features

  • Unshielded wirewound drum core inductor.
  • 15µH inductance with ±20% tolerance.
  • Rated for up to 30A current.
  • Low 13mΩ maximum DCR.
  • Surface mountable for PCB integration.

PB2020.153NL Applications

  • Power supply filtering circuits.
  • DC-DC converter applications.
  • General purpose power applications.
  • Automotive electronics systems.
  • Industrial control modules.

PB2020.153NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance value of the PB2020.153NL?

The inductance value is 15 microhenries.

What is the current rating of the PB2020.153NL?

The typical current rating is 12A, with a maximum of 13A and a rated current of 18A.

What is the DCR of the PB2020.153NL?

The DC resistance is 13 milliohms.

What is the operating temperature range of the PB2020.153NL?

It operates from -40°C to 130°C.

What packaging does the PB2020.153NL come in?

It is packaged in tape and reel.

Is the PB2020.153NL RoHS compliant?

It is marked as RoHS3 compliant, but this status is unverified.
