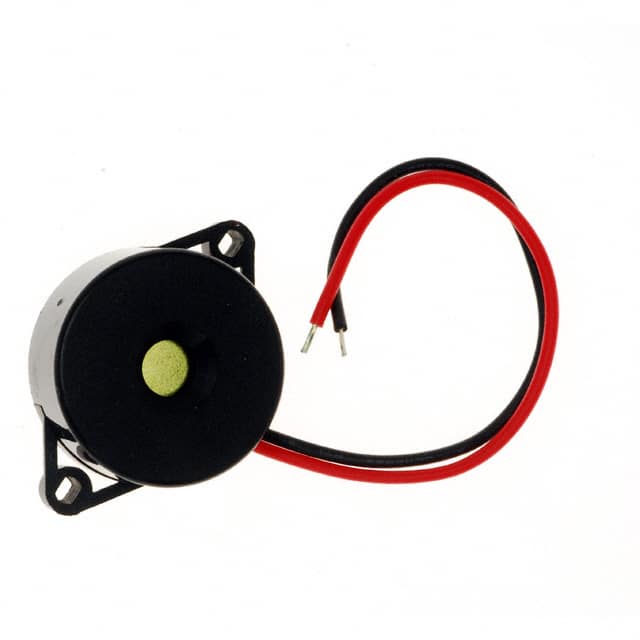

The Soberton Inc. PB-2211 is a piezo buzzer component designed for generating audible signals. It operates on a nominal voltage of 12V, with a wide operating voltage range from 3V to 28V.
This buzzer features a sound pressure level (SPL) of 85dB at a distance of 30cm when powered by 12V, and it emits a single tone at a frequency of 4.5kHz. The driver circuitry is externally driven, utilizing a piezo transducer.
Mechanically, the PB-2211 has a diameter of 22mm and a height of 10.9mm. It is designed for panel mounting with a flange and terminates with wire leads for easy integration into electronic circuits. The operating temperature range for this component is -20°C to 70°C.
This buzzer is suitable for various applications requiring simple audio feedback or alarms.
The PB-2211 buzzer operates at a nominal voltage of 12V, with a voltage range of 3V to 28V.
The PB-2211 buzzer produces a sound at a frequency of 4.5kHz.
The Sound Pressure Level (SPL) for the PB-2211 is 85dB at 12V and 30cm.
The PB-2211 uses transducer, externally driven circuitry.
The PB-2211 is designed for panel mounting with a flange.
The current consumption of the PB-2211 is 8mA at 12V.
The PB-2211 buzzer has a diameter of 22mm and a height of 10.9mm.
