| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

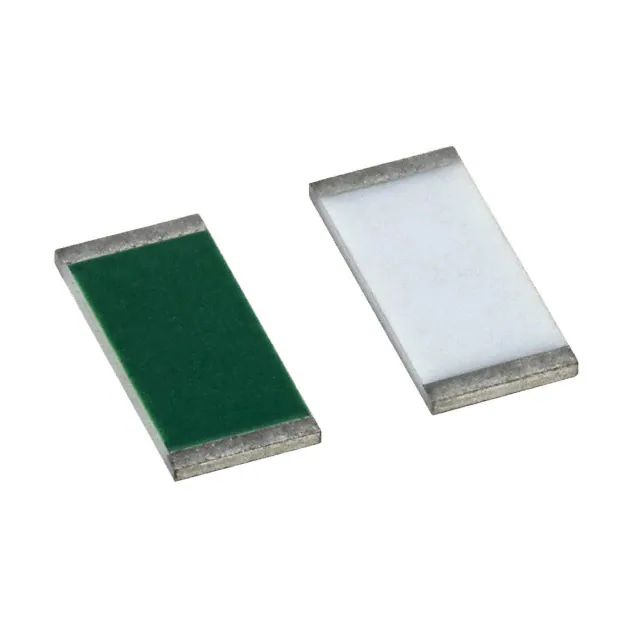

The PAT0805E1001BST1 is a thin film chip resistor from Vishay Dale, designed for surface mount applications. It offers a precise resistance value of 1 kOhms with a tight tolerance of ±0.1%. The resistor has a power rating of 0.2W (1/5W) and operates within a temperature range of -55°C to 155°C.
Key features include its anti-sulfur, moisture-resistant construction, and automotive AEC-Q200 qualification, making it suitable for demanding environments. The component comes in an 0805 (2012 Metric) package with dimensions of 2.03mm x 1.27mm and a height of 0.46mm. It has a temperature coefficient of ±25ppm/°C.
This chip resistor is ideal for applications requiring stable performance and high accuracy. Its robust design and compliance with automotive standards ensure reliability in various electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1 kOhms.
The tolerance is ±0.1%.
The power rating is 0.2W, or 1/5W.
The operating temperature range is -55°C to 155°C.
The resistor is in an 0805 (2012 Metric) package.
Yes, it is rated AEC-Q200.
