Mfr Part #:

PAS150-9

Mfr Name: Tamura

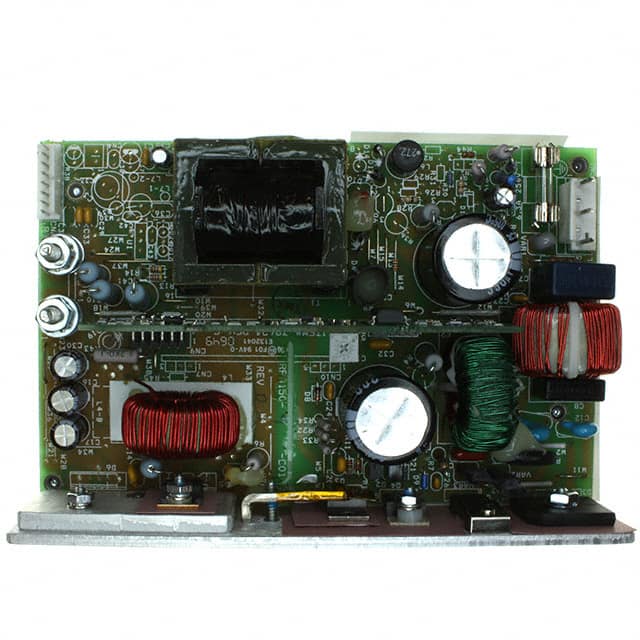

The Tamura PAS150-9 is an 80W open-frame AC/DC converter designed for ITE (Commercial) applications. It features chassis mounting and a universal input voltage range.

Stock on Request

PAS150-9 Description

Short technical summary and product information.

The Tamura PAS150-9 is an 80W open-frame AC/DC converter suitable for ITE (Commercial) applications. It offers a universal input voltage range of 85-132 VAC and 180-264 VAC, with a single output of 3.5A.

Key features include adjustable output, Power Factor Correction (PFC), and remote on/off and sense capabilities. The unit operates within a temperature range of 0°C to 70°C with derating. Its dimensions are 152.4mm x 101.6mm x 38.1mm.

Designed for chassis mounting, this converter provides a reliable power solution for various electronic systems. It is compliant with RoHS3 standards and has an MSL of 1.

PAS150-9 Quick Information

Product Type: AC DC Converter

Canonical Name: Tamura PAS150-9 AC/DC Converter

Subcategory: AC DC Converter

PAS150-9 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PAS150-9 Features

80W open-frame AC/DC converter.
Universal input voltage range.
Chassis mount design.
RoHS3 compliant.
Operates 0°C to 70°C.

PAS150-9 Applications

Ideal for commercial IT equipment power supplies.
Used in chassis-mounted commercial power systems.
Provides 80W single-output AC-DC conversion.
Suitable for universal input commercial applications.

PAS150-9 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the input voltage range?

The input voltage range is 85~132 VAC or 180~264 VAC.

What is the output voltage and current?

Output is 48V DC at 3.5 A.

What is the operating temperature range?

Operating temperature is 0°C to 70°C with derating.

What is the mounting type?

Chassis mount.

What is the power rating?

80W continuous, 150W with forced air cooling.

What features does the converter include?

Features include adjustable output, PFC, remote on/off, remote sense, and universal input.

Category	AC DC Converters
Manufacturer Name	Tamura
Applications	ITE (Commercial)
Approval Agency	CE
Current	3.5 A
Efficiency	85%
Features	Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input
Height	38.1mm (1.50")
Length	152.4mm (6.00")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	0°C ~ 70°C (With Derating)
Power (Watts)	80W (150W Forced Air)
Type	Open Frame
Voltage	85 ~ 132 VAC, 180 ~ 264 VAC
Width	101.6mm (4.00")
