| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

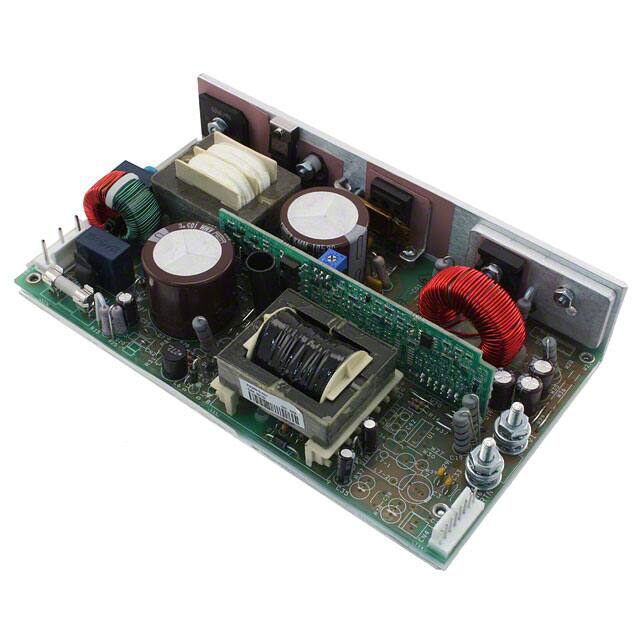

The Tamura PAM250-5 is a versatile open-frame AC/DC converter suitable for medical applications. It features a wide input voltage range of 85 to 264 VAC and delivers 130W of power, with a peak capability of 250W under forced air cooling. The converter offers a single output and a current rating of 17A.
Designed for robust performance, the PAM250-5 operates within a temperature range of 0°C to 70°C with derating. Its features include adjustable output, Power Factor Correction (PFC), remote on/off control, remote sense capability, and universal input. The unit is chassis mountable and has dimensions of 177.8mm x 100.0mm x 40.0mm.
Compliance is indicated by CB and CE approvals. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The REACH status is REACH Unaffected.
85 to 132 VAC and 180 to 264 VAC.
0°C to 70°C with derating.
85%.
Adjustable output, PFC, remote on/off, remote sense, universal input.
130W (250W forced air).
Medical.
177.8mm x 100.0mm x 40.0mm.
