| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
858 pcs
|
858 pcs | On Request | 1 | On Request | On Request | 1303+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |

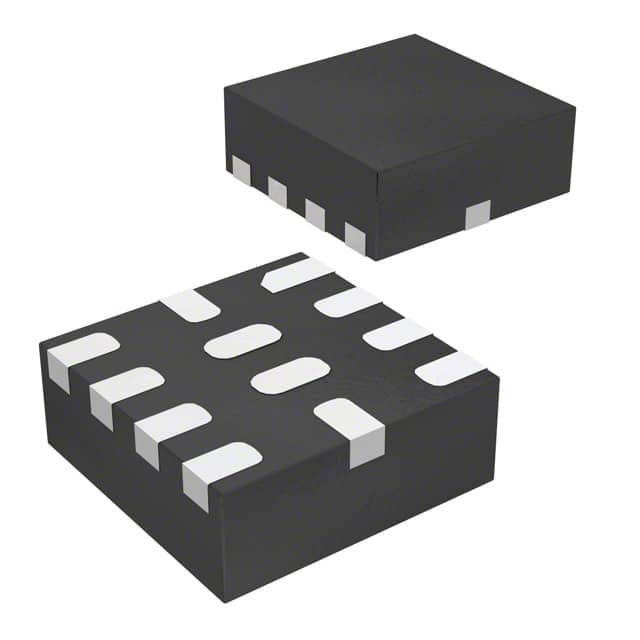

The PAM2325AGPADJ from Diodes Incorporated is a 3.5A step-down synchronous converter designed for portable applications. Its 1.2MHz switching frequency allows for the use of small external components, and its ultra-small 2mm x 2mm footprint contributes to its suitability for space-constrained designs.
This converter delivers a maximum output current of 3.5A with a low quiescent current of 55µA. It supports an adjustable output voltage and operates over an input voltage range of 2.5V to 5.5V. The device features 100% duty cycle low-dropout operation, internal soft start, and a power good indicator. Protection features include over-temperature and current limit protection, with a hiccup mode for output short protection.
The PAM2325AGPADJ is available in a 12-QFN (2x2) package and operates within a temperature range of -40°C to +85°C. Its high efficiency and excellent transient response make it a suitable choice for applications such as cellular phones, digital cameras, and portable media players.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal input voltage is 2.5V.
The maximum output current is 3.5A.
The switching frequency is 1.2MHz.
The operating temperature range is -40°C to +85°C.
It comes in a 12-QFN (2x2) surface-mount package.
Yes, the output type is adjustable.
Yes, the device features a synchronous rectifier.
