| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,637 pcs
|
3637 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Efficiency | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Quiescent Current | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |

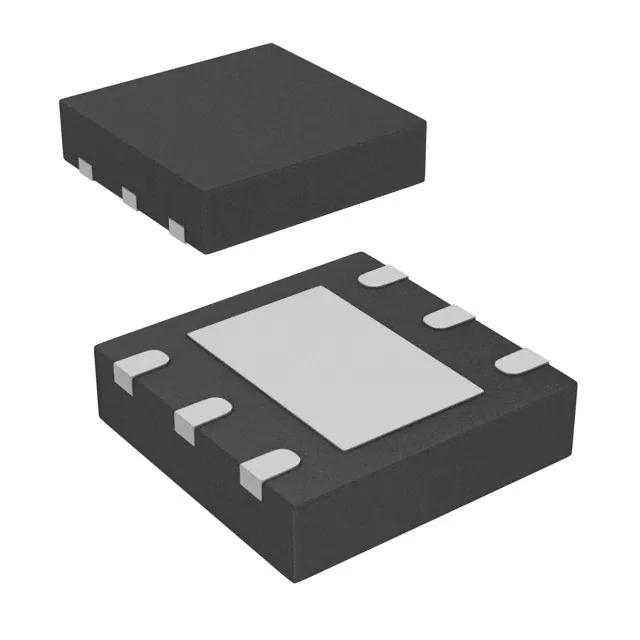

The PAM2305CGFADJ from Diodes Incorporated is a 1A step-down, current-mode DC-DC converter. It supports an input voltage range of 2.5V to 5.5V and provides an adjustable output voltage from 0.6V up to the input voltage.
Key features include a high efficiency of up to 96%, a low quiescent current of 40µA typical, and a switching frequency of 1.5MHz. The device incorporates an internal synchronous rectifier to minimize external component count and enhance efficiency. It is designed for portable applications where power saving is critical.
This converter is available in a compact 6-WDFN exposed pad package, suitable for surface mounting. It also includes features such as soft start, under-voltage lockout, short circuit protection, and thermal shutdown for robust operation.
Applications for the PAM2305CGFADJ include cellular phones, portable electronics, wireless devices, and other battery-powered equipment requiring efficient voltage regulation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.5V to 5.5V.
-40°C to 85°C.
6-WDFN Exposed Pad (6-DFN 2x2mm).
1A.
1.5MHz typical.
96%.
Yes.
