| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

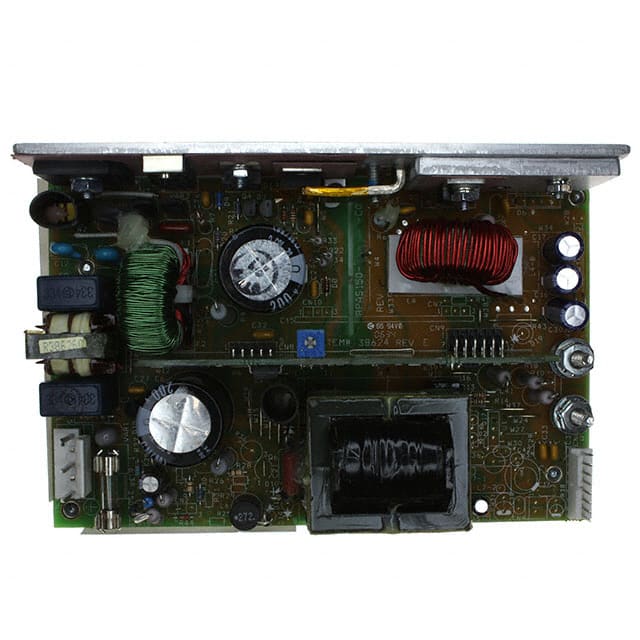

The Tamura PAM150-4 is a versatile AC/DC converter delivering 80W of power with a single output. Designed for demanding applications, particularly in the medical field, this unit offers a universal input voltage range of 85 to 264 VAC.
Featuring an open frame construction and chassis mount type, the PAM150-4 is suitable for integration into various systems. Its key electrical specifications include an output current of 12.5A and an efficiency of 85%. The converter operates within a temperature range of 0°C to 70°C, with derating applied at higher temperatures. Additional features include adjustable output, remote sense, and universal input capabilities.
The dimensions of the PAM150-4 are 152.4mm in length, 101.6mm in width, and 38.1mm in height. It is approved by CB and CE agencies, ensuring compliance with relevant standards. The part number MT7321-ND is also associated with this product.
The Tamura PAM150-4 provides a current of 12.5 A.
The input voltage range is 85 ~ 132 VAC and 180 ~ 264 VAC.
The PAM150-4 uses chassis mount.
The operating temperature range is 0°C to 70°C, with derating.
The power rating is 80W, or 150W with forced air.
The dimensions are 152.4mm (L) x 101.6mm (W) x 38.1mm (H).
