| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Duration | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

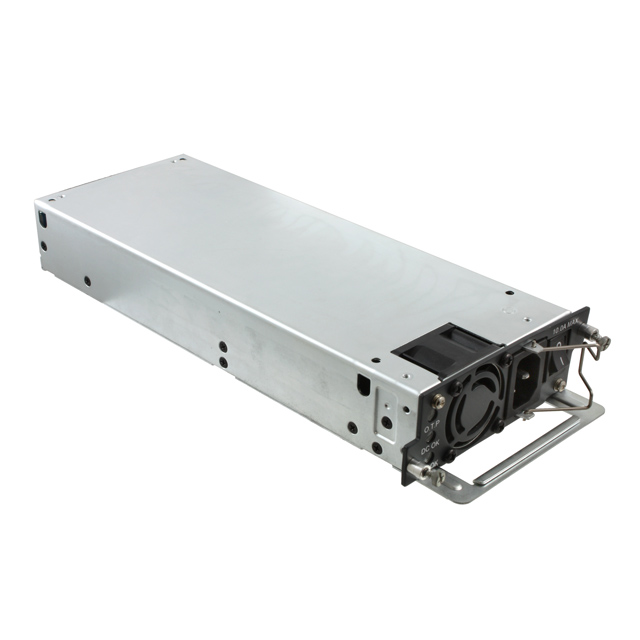

The Bel Power Solutions PALS400-2482G is a 400W front-end AC DC converter designed for ITE (Commercial) applications. It features a dual output configuration, providing 48V at 8A and 12V at 16A. The converter operates with a universal input voltage range of 85 to 264 VAC and boasts an efficiency of 85%.
Key features include an I²C™ interface, load sharing capabilities, Power Factor Correction (PFC), remote sense, and a standby output. The unit is designed for rack mounting and has dimensions of 299.5mm x 101.6mm x 40.4mm. The operating temperature range is from 0°C to 50°C.
85 ~ 264 VAC
Bulk
0°C ~ 50°C
Output 1: 48V at 8A; Output 2: 12V at 16A.
400W
85%
Rack Mount
