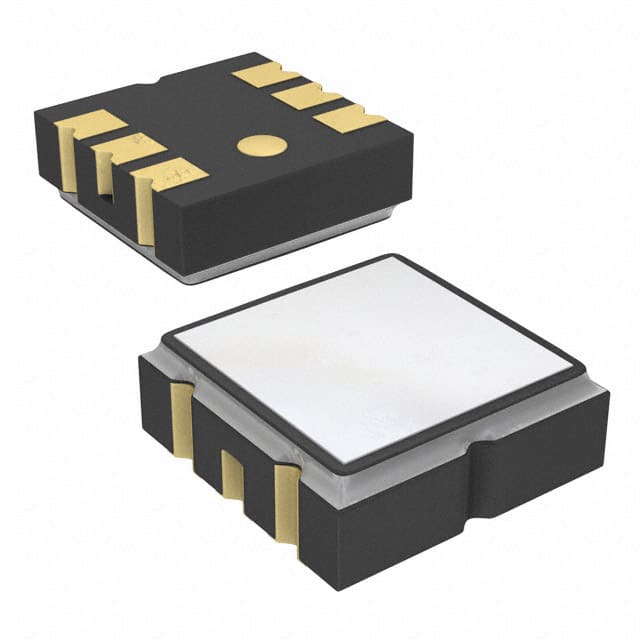

PAFC243B The Kyocera AVX PAFC243B is a SAW filter operating at a center frequency of 243.95MHz. It features a low insertion loss and is housed in a 6-SMD, No Lead package.
Mfr Part #:

PAFC243B

Available from 2 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
The Kyocera AVX PAFC243B is a SAW filter operating at a center frequency of 243.95MHz. It features a low insertion loss and is housed in a 6-SMD, No Lead package.
✓ Total Stock: 2,042 pcs
$ Price Range: $0.99

PAFC243B Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,021 pcs
On Request
1021 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,021 pcs
On Request
1021 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PAFC243B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bandwidth
Frequency
Height
Height (Max)
Insertion Loss
Lead Spacing
Length
Mounting Type
Ripple
Storage Temperature
Tape & Reel
Width
View Similar Products (0)

PAFC243B Description

Short technical summary and product information.

This Kyocera AVX PAFC243B is a Surface Acoustic Wave (SAW) filter designed for wireless applications. It operates at a center frequency of 243.95MHz with a maximum insertion loss of 4.0dB and a pass band width of ±130kHz.



The filter has a stop band attenuation of 40dB minimum at fn±1.2kHz and 60dB minimum at fn±faMHz*. It also specifies a maximum ripple of 1.5dB and a group delay time of 1.2µs maximum within the pass band.



The PAFC243B is constructed with a ceramic package type, offering a small and low profile. It is designed for surface mounting and comes in a 6-SMD, No Lead package measuring 3.80mm in length and width, with a maximum height of 1.30mm.



This component is suitable for applications requiring circuit simplification and flat pass band characteristics. The operating temperature range is from -10°C to 60°C.

PAFC243B Quick Information

Product Type: SAW Filter
Series: PAFC
Canonical Name: PAFC243B Surface Acoustic Wave Filter
Subcategory: SAW Filter

PAFC243B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PAFC243B Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PAFC243B Features

  • SAW filter with 243.95MHz center frequency.
  • Low insertion loss of 4.0dB maximum.
  • Pass band width of ±130kHz minimum.
  • Compact 6-SMD, No Lead package.
  • Surface mountable for easy integration.

PAFC243B Applications

  • Ideal for PHS applications.
  • Suitable for wireless communication systems.
  • Designed for circuit simplification.
  • Features flat pass band characteristics.

PAFC243B FAQs

5 frequently asked questions generated from this part’s specifications.
What is the center frequency of the PAFC243B SAW filter?

The center frequency of the PAFC243B SAW filter is 243.95MHz.

What is the maximum insertion loss for the PAFC243B?

The maximum insertion loss for the PAFC243B is 4.0dB.

What is the operating temperature range for the PAFC243B?

The operating temperature range for the PAFC243B is -10°C to 60°C.

What type of package does the PAFC243B come in?

The PAFC243B comes in a 6-SMD, No Lead package.

What are the dimensions of the PAFC243B?

The PAFC243B has dimensions of 3.80mm in length and 3.80mm in width, with a maximum height of 1.30mm.
