| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,180 pcs
|
1180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing |

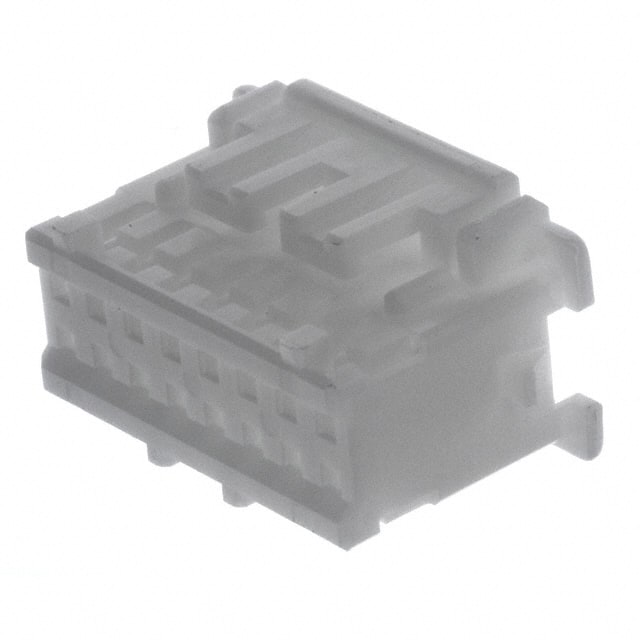

The JST PADP-16V-1-S is a 16-position receptacle housing designed for 2.00mm pitch connectors. It features a dual-row configuration with 2 rows and uses a latch lock fastening mechanism for secure mating. The housing is free hanging (in-line) and accepts female socket contacts with crimp termination. The operating temperature range is -25°C to 85°C, making it suitable for a wide variety of environments. The natural color housing is made from a robust material, though specific flammability rating is not provided. This housing is commonly used in wire-to-board or wire-to-wire applications where a compact and reliable connection is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
| 10+ | $0.25 | $0.25 |
| 25+ | $0.24 | $0.24 |
| 50+ | $0.23 | $0.23 |
| 100+ | $0.22 | $0.22 |
| 250+ | $0.20 | $0.20 |
| 500+ | $0.19 | $0.19 |
| 1,000+ | $0.18 | $0.18 |
| 3,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 16 positions.
The pitch is 2.00mm.
It supports free hanging (in-line) mounting.
The operating temperature range is -25°C to 85°C.
It uses a latch lock fastening mechanism.
It has 2 rows.
The contact termination method is crimp.
