| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

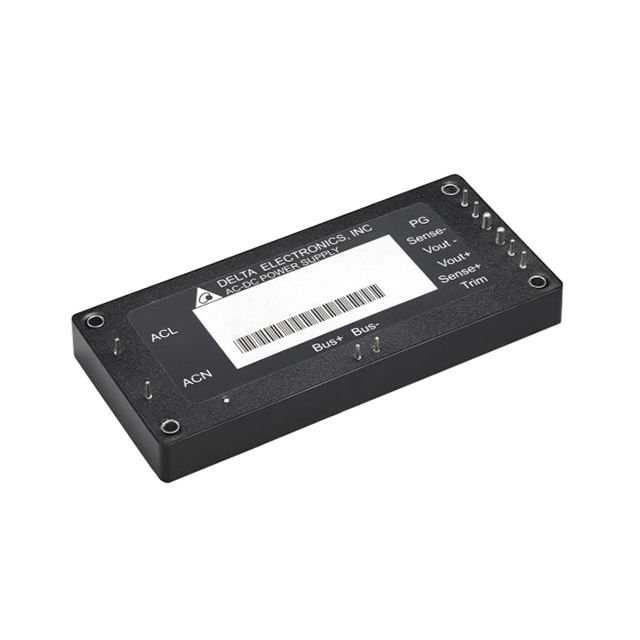

The Delta Electronics PACSR28010S is an enclosed AC-DC converter designed for ITE (Commercial) applications. It features a single output of 28V with a current rating of 10.5A, providing a total power of 294W. The input voltage range is wide, spanning from 85 to 265 VAC, supporting universal input.
Key electrical specifications include an efficiency of 93% and features such as adjustable output, baseplate cooling, remote sense, and universal input. The operating temperature range is -40°C to 100°C with derating.
Mechanically, the converter has dimensions of 110.7mm in length, 50.8mm in width, and 13.7mm in height. It is designed for through-hole mounting and comes in a 10-DIP Module package.
Environmental compliance includes RoHS3 compliance and an MSL rating of 1 Unlimited. The REACH status is noted as REACH Unaffected.
85 to 265 VAC.
28V at 10.5A.
294W.
93%.
-40°C to 100°C with derating.
10-DIP Module.
Adjustable output, baseplate, remote sense, universal input.
