PA2756NL The Pulse Electronics PA2756NL is a common mode choke designed for power line filtering. It features a surface mount package and a maximum current rating of 8A.
Mfr Part #:

PA2756NL

Available from 2 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PA2756NL is a common mode choke designed for power line filtering. It features a surface mount package and a maximum current rating of 8A.
✓ Total Stock: 19 pcs
$ Price Range: $0.99

PA2756NL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PA2756NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Length
Mounting Type
Number of Lines
Operating Temperature
Tape & Reel
Width
View Similar Products (0)

PA2756NL Description

Short technical summary and product information.

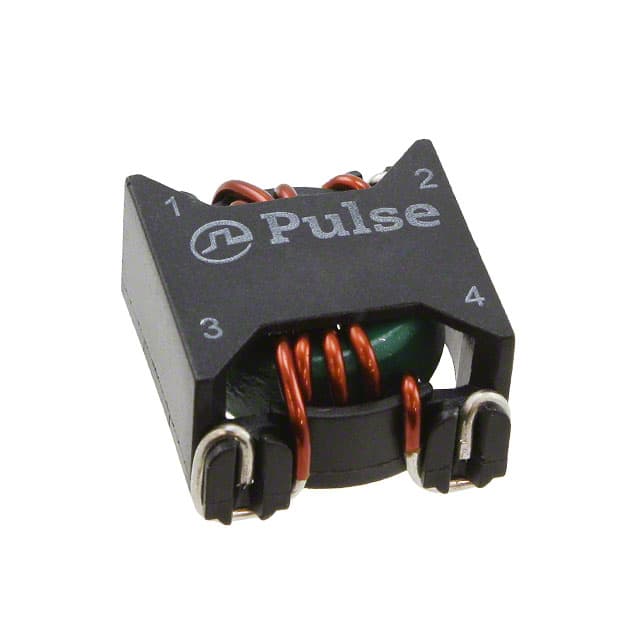

The Pulse Electronics PA2756NL is a common mode choke suitable for power line filtering applications. This component is designed for surface mount installation and offers a maximum current rating of 8A.



Key electrical specifications include a maximum DC resistance of 7.7 mOhm and it operates with 2 lines. The operating temperature range for this choke is from -40°C to 130°C.



Mechanically, the PA2756NL has dimensions of 17.02mm in length and 19.56mm in width, with a maximum height of 9.91mm. The package type is described as Horizontal, 4 PC Pad, facilitating its integration into various electronic designs.



Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status. These attributes make it a consideration for designs requiring specific environmental standards.

PA2756NL Quick Information

Product Type: Common Mode Choke
Canonical Name: Pulse Electronics PA2756NL Common Mode Choke

PA2756NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PA2756NL Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PA2756NL Features

  • Power line common mode choke.
  • Rated for a maximum of 8A current.
  • Surface mountable package.
  • Wide operating temperature range.
  • RoHS3 compliant.

PA2756NL Applications

  • Used in power line noise suppression
  • Ideal for EMI filtering in electronic devices
  • Suitable for compact PCB designs
  • Applied in power supply circuits

PA2756NL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum operating temperature of the PA2756NL?

-40°C to 130°C

What is the current rating of the PA2756NL?

8A

What is the maximum DC resistance of the PA2756NL?

7.7 mOhm

What mounting type does the PA2756NL use?

Surface Mount

What package does the PA2756NL come in?

Horizontal, 4 PC Pad
