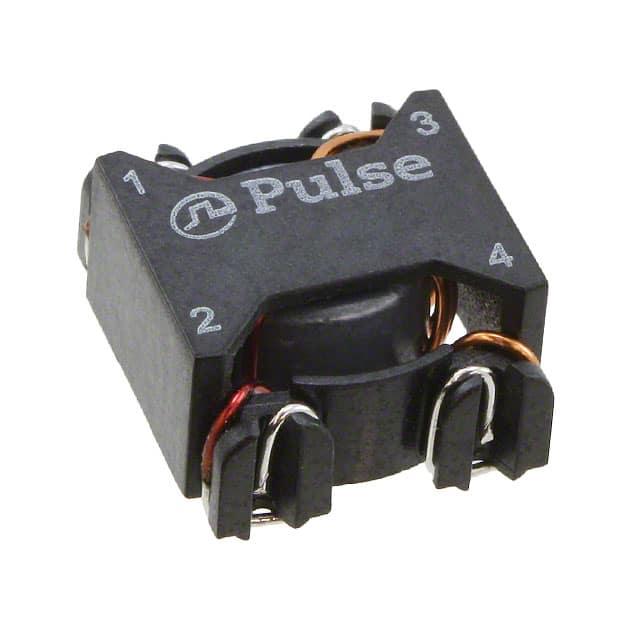

PA2749NL The Pulse Electronics PA2749NL is a common mode choke with a 3.8A current rating and a wide operating temperature range of -40°C to 130°C. It features a surface mount package.
Mfr Part #:

PA2749NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PA2749NL is a common mode choke with a 3.8A current rating and a wide operating temperature range of -40°C to 130°C. It features a surface mount package.
✓ Total Stock: 60 pcs
$ Price Range: $0.99

PA2749NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
60 pcs
On Request
60 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PA2749NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Height (Max)
Length
Mounting Type
Number of Lines
Operating Temperature
Tape & Reel
Width
View Similar Products (0)

PA2749NL Description

Short technical summary and product information.

The Pulse Electronics PA2749NL is a common mode choke designed for filtering applications. It offers a maximum current rating of 3.8A and a DC resistance (DCR) of 17.1mOhm (max).



This component operates within a temperature range of -40°C to 130°C. It has a two-line configuration and is housed in a horizontal, 4 PC Pad package suitable for surface mounting.



The dimensions of the PA2749NL are 14.22mm in length and 16.40mm in width, with a maximum height of 8.90mm. Its RoHS3 compliant status and MSL 1 rating indicate suitability for various manufacturing processes.

PA2749NL Quick Information

Product Type: Common Mode Choke
Canonical Name: Pulse Electronics PA2749NL Common Mode Choke
Subcategory: Common Mode Choke

PA2749NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PA2749NL Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PA2749NL Features

  • 3.8A maximum current rating.
  • Low 17.1mOhm maximum DCR.
  • Wide -40°C to 130°C operating temperature.
  • Surface mountable horizontal package.
  • Two-line common mode choke.

PA2749NL Applications

  • Suitable for power supply noise filtering.
  • Used in electronic equipment for EMI suppression.
  • Ideal for high-current filtering in industrial devices.
  • Applicable in communication systems for signal integrity.
  • Designed for surface-mount applications in compact circuits.

PA2749NL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum current rating of the PA2749NL?

The maximum current rating is 3.8A.

What is the DC resistance of the PA2749NL?

The DC resistance is 17.1mOhm.

What is the operating temperature range of the PA2749NL?

It operates from -40°C to 130°C.

What type of mounting does the PA2749NL use?

It uses a surface mount package with a horizontal, 4 PC pad configuration.

Is the PA2749NL compliant with RoHS?

RoHS compliance status is unverified.
