| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-05-08 04:16:12 | |
|
282 pcs
|
282 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Width |

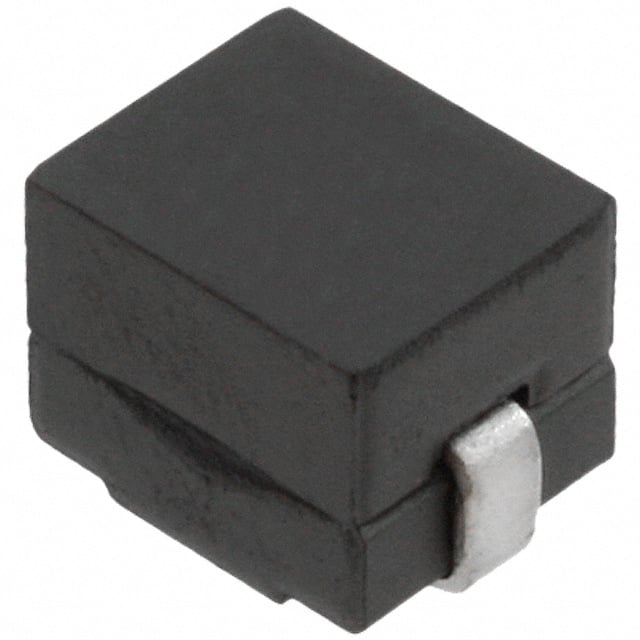

This Pulse Electronics PA2607.181NLT is a fixed inductor from the PA2607NL series, designed for power applications. It features a shielded construction and a surface mount package.
Key electrical specifications include an inductance of 175 nH with a tolerance of ±15%, a high current rating of 41A, and a low DC resistance of 0.29 mOhm. The component operates within a temperature range of -40°C to 130°C.
The inductor has a compact size with dimensions of 10.31mm L x 7.65mm W x 7.60mm H. It is suitable for various electronic designs requiring efficient power handling and filtering.
Compliance information indicates RoHS3 compliance and an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the PA2607.181NLT is 175 nH.
The PA2607.181NLT has a current rating of 41 A.
The DC resistance of the PA2607.181NLT is 0.29 mOhm.
The operating temperature range is -40°C to 130°C.
The PA2607.181NLT uses a Surface Mount package.
