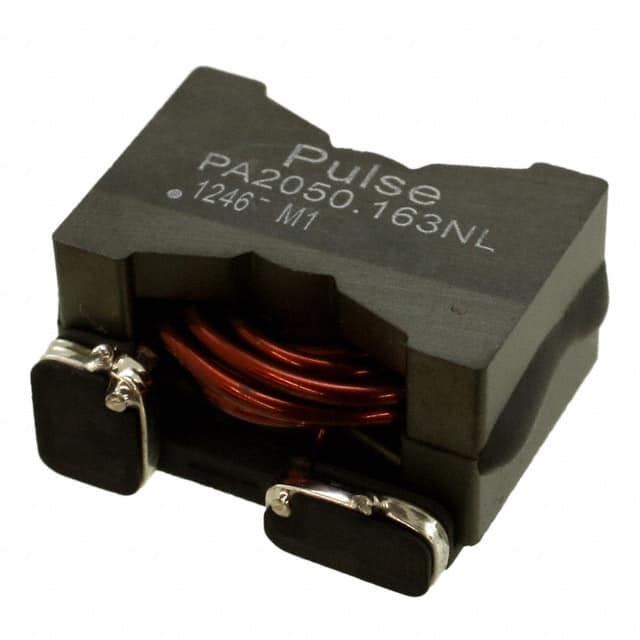

PA2050.163NL The Pulse Electronics PA2050.163NL is a wirewound, shielded, fixed inductor with a 16µH inductance and a 9.9A current rating. It features a low 9.1mOhm DCR and is designed for surface mounting.
Mfr Part #:

PA2050.163NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics PA2050.163NL is a wirewound, shielded, fixed inductor with a 16µH inductance and a 9.9A current rating. It features a low 9.1mOhm DCR and is designed for surface mounting.
✓ Total Stock: 20 pcs
$ Price Range: $0.52

PA2050.163NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PA2050.163NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

PA2050.163NL Description

Short technical summary and product information.

The Pulse Electronics PA2050.163NL is a shielded, wirewound fixed inductor designed for surface mount applications. It offers a nominal inductance of 16µH with a tolerance of ±10% and a rated current of 9.9A. The component exhibits a low DC resistance (DCR) of 9.1mOhm, contributing to efficient operation.



With an operating temperature range of -40°C to 130°C, this inductor is suitable for various environmental conditions. Its dimensions are 22.23mm in length, 19.05mm in width, and 12.20mm in height. The shielded construction helps minimize electromagnetic interference, making it a reliable choice for power supply circuits, filtering, and other electronic applications requiring stable inductance.



This part is classified as a nonstandard package type. Its RoHS 3 compliance and MSL 1 rating indicate adherence to common industry standards for electronic components.

PA2050.163NL Quick Information

Product Type: Fixed Inductor
Canonical Name: Pulse Electronics PA2050.163NL Wirewound Shielded Fixed Inductor
Subcategory: Fixed

PA2050.163NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PA2050.163NL Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

PA2050.163NL Features

  • Shielded wirewound fixed inductor.
  • 16µH inductance with ±10% tolerance.
  • Rated for 9.9A current.
  • Low 9.1mOhm DC resistance.
  • Surface mountable design.

PA2050.163NL Applications

  • Suitable for power supply filtering.
  • Used in signal processing circuits.
  • Ideal for EMI reduction applications.
  • Component for general electronic designs.

PA2050.163NL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the Pulse Electronics PA2050.163NL?

The inductance is 16µH with a tolerance of ±10%.

What is the current rating for the PA2050.163NL inductor?

The current rating is 9.9A.

What is the DC Resistance (DCR) of this Pulse Electronics inductor?

The DC Resistance is 9.1mOhm.

What is the operating temperature range for the PA2050.163NL?

It operates from -40°C to 130°C.

How is the PA2050.163NL mounted?

This inductor is designed for surface mounting.
