| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,053 pcs
|
1053 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Width |

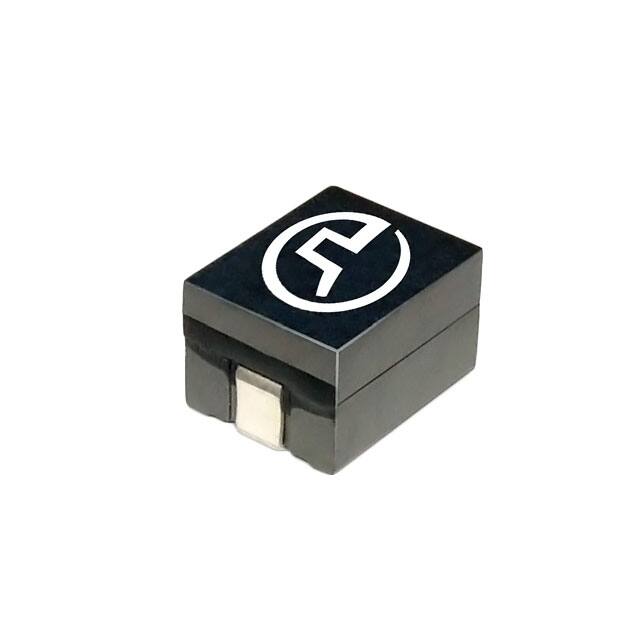

This Pulse Electronics PA1320.171NLT is a fixed inductor designed for surface mount applications. It offers a shielded construction, providing 180nH of inductance with a tolerance of ±20%. The component is rated for a significant current of 40A, with a low DC resistance of 0.48mOhm, making it suitable for high-power applications.
The inductor operates within a temperature range of -40°C to 130°C. Its mechanical dimensions are 10.41mm in length, 8.00mm in width, and 6.50mm in height. The nonstandard package size is designed for robust surface mounting.
This part is compliant with RoHS3 standards and has an MSL rating of 1. Its REACH status is unaffected. The part is identified by its manufacturer part number PA1320.171NLT and a distributor part number PA1320.171NLT-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 180 nH.
The current rating is 40 A.
The DC resistance is 0.48 mOhm.
The operating temperature range is -40°C to 130°C.
Yes, the PA1320.171NLT is shielded.
The dimensions are 10.41mm L x 8.00mm W x 6.50mm H.
