| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
847 pcs
|
847 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Width |

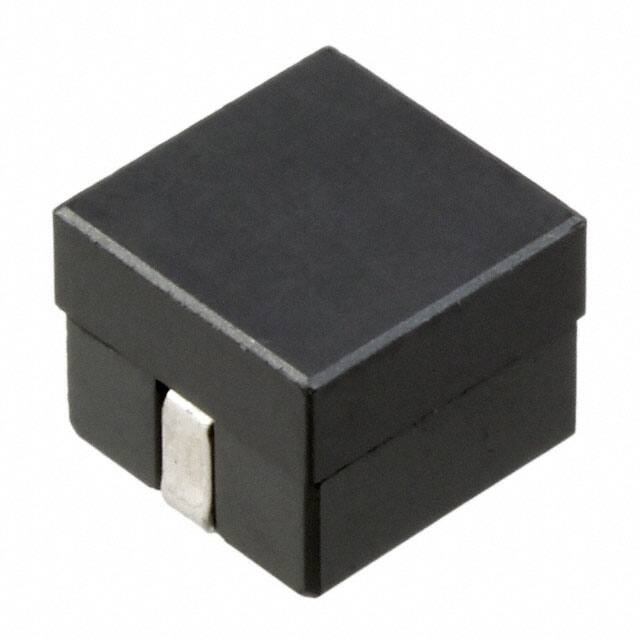

The Pulse Electronics PA0512.151NLT is a fixed inductor designed for surface mount applications. It offers a shielded construction, providing 150 nH of inductance with a tolerance of ±20%. This component is rated for a current of 24A and has a low DC resistance of 0.32 mOhm.
The inductor operates within a temperature range of -40°C to 130°C. Its dimensions are 7.00mm in length and width, and 4.96mm in height. The part is classified under RoHS3 compliance and has an MSL rating of 1.
This fixed inductor is suitable for various electronic circuits requiring stable inductance and high current handling capabilities. Its surface mount package facilitates integration into compact designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 150 nanohenry.
The current rating is 24 amperes.
The DC resistance is 0.32 milliohms.
The operating temperature range is -40°C to 130°C.
It is a surface mount component.
It is marked as RoHS3 compliant, but compliance status is unverified.
