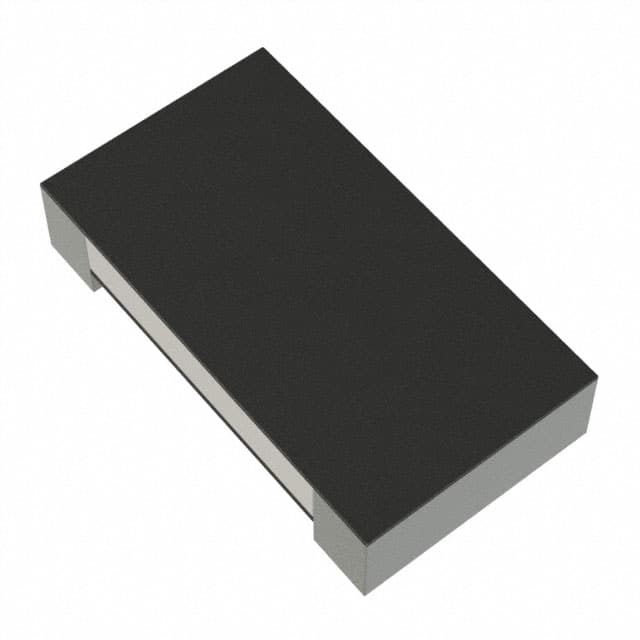

PA0402-R-070RL The Yageo PA0402-R-070RL is a surface mount chip resistor designed as a jumper with 0 Ohm resistance. It features a 1/16W power rating and operates within a temperature range of -55°C to 125°C.
